531202B02100G: Heat Sinks EXTR RAD TO-202/220 38.1mm VERT BLK

531202B02100G Data Sheet

US $ 2.42~2.69 / Piece | Get Latest Price

Part Number:: 531202B02100G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~750
750~1000
1000~1500

Unit Price
$2.69
$2.48
$2.42

Processing time
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5312/2TDHP evaluate
US $83.22 - 87.64 / Piece

Fans & Blowers 140x140x51 12VDC 241.3 CFM 41W
53120 evaluate
US $11.62 - 11.62 / Piece

TOOL SCREWDRVR PHIL SZ3 268MM
531230-2 evaluate
US $.34 - .54 / Piece

Headers & Wire Housings 2POS SHUNT .2" GLD

Product Details

Description

Product :
Mounting Style :
Heatsink Material :
Fin Style :
Thermal Resistance :
Length :
Width :
Height :
Designed for :

Pinout

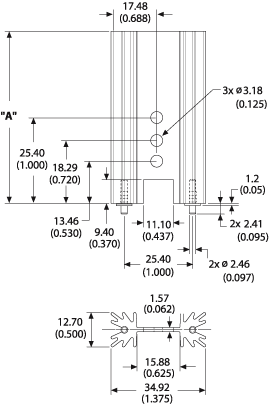

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
531202B02100G	Extruded heat sink with radial fins notched base and solderable pins	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

7.50

Thermal resistance value of 531202B02100G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	531202B02100G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On and PC Pin
Height	2" (50.8mm)
Material	Aluminum
Package Cooled	TO-220, TO-202
Power Dissipation @ Temperature Rise	8W @ 60°C
Thermal Resistance @ Forced Air Flow	4°C/W @ 600 LFM
Outline	34.92mm x 12.70mm
Thermal Resistance @ Natural	7.5°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	531202B02100G 531202B02100G
