530101B00150G

Heat Sinks BLACK ANODIZE TO-218

product image

530101B00150G Picture
See larger image
SeekIC No. : 002533065 Detail

530101B00150G: Heat Sinks BLACK ANODIZE TO-218

530101B00150G Data Sheet

floor Price/Ceiling Price

US $ .67~.78 / Piece | Get Latest Price
Part Number:
530101B00150G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $.78
  • $.74
  • $.71
  • $.67
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : SMD/SMT
Heatsink Material : Aluminum Fin Style : Twisted
Thermal Resistance : 6.3 C / W Length : 12.7 mm
Width : 44.45 mm Height : 44.45 mm
Designed for : TO-218

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : SMD/SMT
Length : 12.7 mm
Fin Style : Twisted
Width : 44.45 mm
Designed for : TO-218
Thermal Resistance : 6.3 C / W
Height : 44.45 mm


Pinout

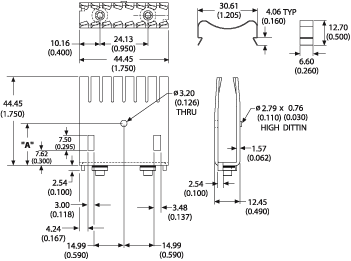

Connection Diagram


Specifications

Part # Description Finish Board Mounting
530101B00150G High rise style heat sink features twisted fins and solderable Wave On mounts and device clip Black Anodize View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 6.30

Thermal resistance value of 530101B00150G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information530101B00150G
VendorAavid Thermalloy
CategoryFans, Thermal Management
Attachment MethodClip
Height1.75" (44.45mm)
MaterialAluminum
Package CooledTO-218
Power Dissipation @ Temperature Rise4W @ 30°C
Thermal Resistance @ Forced Air Flow1.5°C/W @ 400 LFM
Outline44.45mm x 12.45mm
Thermal Resistance @ Natural6.3°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 530101B00150G
530101B00150G
HS335 ND
HS335ND
HS335
