529901B02500G: Heat Sinks LARGE SOLDER PIN

529901B02500G Data Sheet

US $ .74~.74 / Piece | Get Latest Price

Part Number:: 529901B02500G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~2830

Unit Price
$.74

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5299 evaluate
US $3.62 - 4.2 / Piece

RF Adapters - Between Series 3LUG TRX F-BNC MALE
5299/19C SL002 evaluate
US $11430.24 - 11430.24 / Piece

Multi-Paired Cable 20AWG 19PR SHIELD 500ft SPOOL SLATE
5299/19C SL005 evaluate
US $2226.8 - 2288.37 / Piece

Multi-Paired Cable 20AWG 19PR SHIELD 100ft SPOOL SLATE

Product Details

Quick Details

Product :	Heatsinks	Heatsink Material :	Aluminum
Fin Style :	Radial	Thermal Resistance :	4.5 C / W
Length :	25.4 mm	Width :	41.91 mm
Height :	50.8 mm	Designed for :	TO-218

Description

Mounting Style :
Product : Heatsinks
Heatsink Material : Aluminum
Height : 50.8 mm
Fin Style : Radial
Length : 25.4 mm
Width : 41.91 mm
Designed for : TO-218
Thermal Resistance : 4.5 C / W

Pinout

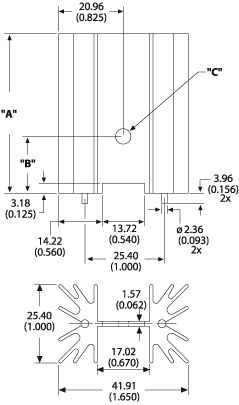

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
529901B02500G	Extruded heat sink with large radial fins and solderable pins	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

4.50

Thermal resistance value of 529901B02500G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	529901B02500G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On
Height	2" (50.8mm)
Material	Aluminum
Package Cooled	TO-218
Power Dissipation @ Temperature Rise	6W @ 30°C
Thermal Resistance @ Forced Air Flow	1.5°C/W @ 400 LFM
Outline	41.91mm x 25.40mm
Thermal Resistance @ Natural	4.5°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	529901B02500G 529901B02500G
