529802B02500G: Heat Sinks TO-220 VERT 3.7 TR

529802B02500G Data Sheet

US $ .6~.85 / Piece | Get Latest Price

Part Number:: 529802B02500G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$.85
$.75
$.63
$.6

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5298 evaluate
US $19.02 - 21.7 / Piece

RF Adapters - Between Series BNC TRIAX 2 LUG
529801B00000 evaluate
US $1.3 - 1.33 / Piece

Heat Sinks EXTR Lg. Radial Fins TO-218 38.1mm Vert
529801B00000G evaluate
PinoutSpecifications Part# Description Finish Board Mounting 529801B00000G Ext...

Product Details

Quick Details

Product :	Heatsinks	Heatsink Material :	Aluminum
Fin Style :	Radial	Thermal Resistance :	3.7 C / W
Length :	25.4 mm	Width :	41.91 mm
Height :	38.1 mm	Designed for :	TO-220

Description

Mounting Style :
Product : Heatsinks
Heatsink Material : Aluminum
Designed for : TO-220
Height : 38.1 mm
Fin Style : Radial
Length : 25.4 mm
Width : 41.91 mm
Thermal Resistance : 3.7 C / W

Pinout

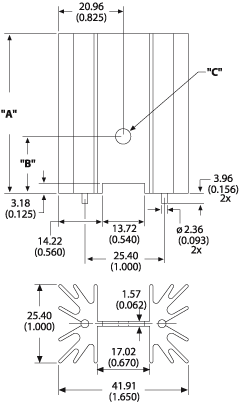

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
529802B02500G	Extruded heat sink with large radial fins and solderable pins	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

3.70

Thermal resistance value of 529802B02500G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	529802B02500G
Vendor	Aavid Thermalloy
Category	Fans, Thermal Management
Attachment Method	Bolt On and PC Pin
Height	1.5" (38.1mm)
Material	Aluminum
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	10W @ 50°C
Thermal Resistance @ Forced Air Flow	3.0°C/W @ 200 LFM
Outline	41.91mm x 25.40mm
Thermal Resistance @ Natural	3.7°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	529802B02500G 529802B02500G HS350 ND HS350ND HS350
