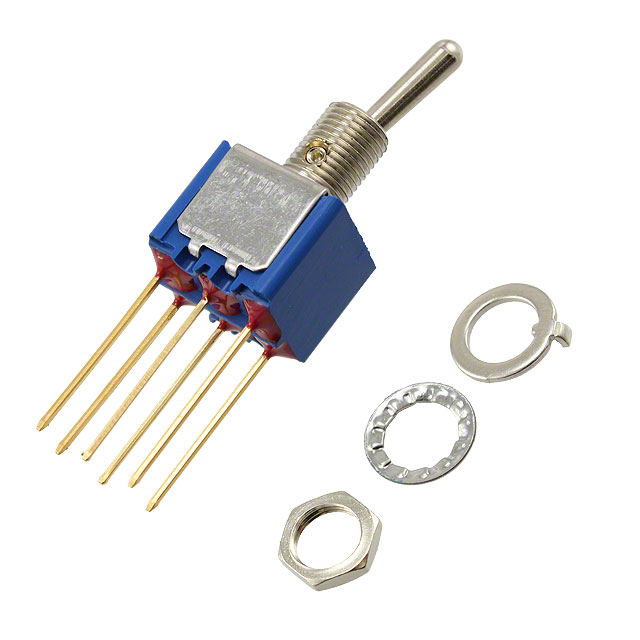

See larger image

SeekIC No. : 002659451 Detail

5246MIWRCD: Toggle Switches DPDT ON-ON

5246MIWRCD Data Sheet

US $ 10.46~14.52 / Piece | Get Latest Price

Part Number:: 5246MIWRCD
Mfg:: Apem
Supply Ability:: 5000

Price Break

Qty
0~50
50~100
100~500

Unit Price
$14.52
$13.26
$10.46

Processing time
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5246AB evaluate
US $4.71 - 6.3 / Piece

Toggle Switches Pln bushing togle DP ON - ON
5246AB16X371 evaluate
US $4.81 - 6.44 / Piece

Toggle Switches DPDT 6A 125V 8.5mm On-On
5246CDB evaluate
US $4.68 - 6.26 / Piece

Toggle Switches DPDT 0.4VA 20VAC/DC 10.5mmOn-On

Product Details

Quick Details

Contact Form :	DPDT	Switch Function :	ON - NONE - ON
Voltage Rating AC :	20 V	Voltage Rating DC :	20 V
Power Rating :	0.4 Volt-Amp	Termination Style :	Wire Wrap
Mounting Style :	Through Hole	Terminal Seal :	Epoxy
Contact Plating :	Gold	Illumination :	Not Illuminated

Description

Current Rating :
Mounting Style : Through Hole
Terminal Seal : Epoxy
Illumination : Not Illuminated
Switch Function : ON - NONE - ON
Voltage Rating AC : 20 V
Voltage Rating DC : 20 V
Contact Plating : Gold
Contact Form : DPDT
Power Rating : 0.4 Volt-Amp
Termination Style : Wire Wrap

Parameters:

Technical/Catalog Information	5246MIWRCD
Vendor	APEM Components
Category	Switches
Circuit	DPDT
Switch Function	On-On
Mounting Type	Panel Mount
Actuator Length	10.500mm
Actuator Type	Standard Round
Bushing Thread	1/4-40
Contact Rating @ Voltage	0.4VA @ 20VAC/DC
Illumination	Non-Illuminated
Termination Style	Wire Wrap
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	5246MIWRCD 5246MIWRCD
