505403B00100G

Heat Sinks TO-3 SQ BSKT B/A 45.21 X 31.75

product image

505403B00100G Picture
See larger image
SeekIC No. : 002534095 Detail

505403B00100G: Heat Sinks TO-3 SQ BSKT B/A 45.21 X 31.75

505403B00100G Data Sheet

floor Price/Ceiling Price

US $ 2.25~2.25 / Piece | Get Latest Price
Part Number:
505403B00100G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1390
  • Unit Price
  • $2.25
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : SMD/SMT
Heatsink Material : Aluminum Fin Style : Straight
Thermal Resistance : 6 C / W Length : 45.21 mm
Width : 45.21 mm Height : 31.75 mm
Designed for : TO-3

Description

Product : Heatsinks
Heatsink Material : Aluminum
Fin Style : Straight
Mounting Style : SMD/SMT
Designed for : TO-3
Height : 31.75 mm
Thermal Resistance : 6 C / W
Length : 45.21 mm
Width : 45.21 mm


Pinout

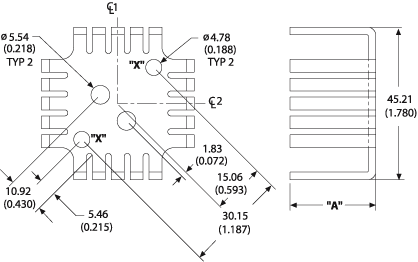

Connection Diagram


Specifications

Part # Description Finish Board Mounting
505403B00100G Square basket heat sink featuring straight fins with solderable mounts Black Anodize View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 6.00

Thermal resistance value of 505403B00100G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information505403B00100G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On
Height1.25" (31.75mm)
MaterialAluminum
Package CooledTO-3
Power Dissipation @ Temperature Rise7W @ 40°C
Thermal Resistance @ Forced Air Flow1.5°C/W @ 600 LFM
Outline45.21mm x 45.21mm
Thermal Resistance @ Natural6°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 505403B00100G
505403B00100G
