Position: Home  > All Categories> Integrated Circuits (ICs) > 502006B00000G

502006B00000G

Heat Sinks TO-66 DIAM SHP BSKT 39.37 X 31.75

product image

502006B00000G Picture
See larger image
SeekIC No. : 002534097 Detail

502006B00000G: Heat Sinks TO-66 DIAM SHP BSKT 39.37 X 31.75

502006B00000G Data Sheet

floor Price/Ceiling Price

US $ 1.6~1.6 / Piece | Get Latest Price
Part Number:
502006B00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1680
  • Unit Price
  • $1.6
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Screw
Heatsink Material : Aluminum Thermal Resistance : 8 C / W
Length : 39.37 mm Width : 26.42 mm
Height : 31.75 mm Designed for : TO-66

Description

Fin Style :
Product : Heatsinks
Mounting Style : Screw
Heatsink Material : Aluminum
Thermal Resistance : 8 C / W
Height : 31.75 mm
Length : 39.37 mm
Width : 26.42 mm
Designed for : TO-66


Pinout

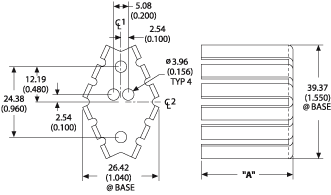

Connection Diagram


Specifications

Part # Description Finish Board Mounting
502006B00000G Low cost diamond shaped basket heat sink Black Anodize N/A



Description

Thermal Resistance 8.00

Thermal resistance value of 502006B00000G  is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information502006B00000G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On
Height1" (25.4mm)
MaterialAluminum
Package CooledTO-66
Power Dissipation @ Temperature Rise7W @ 50°C
Thermal Resistance @ Forced Air Flow4.0°C/W @ 200 LFM
Outline39.37mm x 26.42mm
Thermal Resistance @ Natural8°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 502006B00000G
502006B00000G
