501303B00100: Heat Sinks TO-3 DIAM SHP BSKT 47.75 X 12.70

501303B00100 Data Sheet

US $ 2.7~3.15 / Piece | Get Latest Price

Part Number:: 501303B00100
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$3.15
$2.99
$2.84
$2.7

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5013 evaluate
US $.08 - .26 / Piece

Knobs & Dials DIAL
501303B00000G evaluate
US $.3 - .44 / Piece

Heat Sinks BLACK ANODIZE TO-3
501328-0200 evaluate
US $.07 - .12 / Piece

Headers & Wire Housings 3.3 W/W Inertia Lock Rec Hsg 2Ckt White

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	SMD/SMT
Heatsink Material :	Aluminum	Thermal Resistance :	12 C / W
Length :	47.75 mm	Width :	35.56 mm
Height :	12.7 mm	Designed for :	TO-3

Description

Fin Style :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : SMD/SMT
Height : 12.7 mm
Thermal Resistance : 12 C / W
Designed for : TO-3
Width : 35.56 mm
Length : 47.75 mm

Pinout

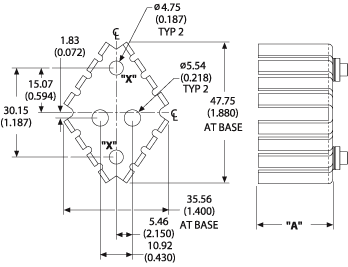

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
501303B00100	Low cost diamond shaped basket heat sink with solderable mounts	Black Anodize	N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

12.00

Thermal resistance value of 501303B00100 is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	501303B00100
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On
Height	0.5" (12.7mm)
Material	Aluminum
Package Cooled	TO-3
Power Dissipation @ Temperature Rise	2.5W @ 40°C
Thermal Resistance @ Forced Air Flow	5.0°C/W @ 200 LFM
Outline	47.75mm x 35.56mm
Thermal Resistance @ Natural	12°C/W
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	501303B00100 501303B00100
