501200B00000G: Heat Sinks HEAT SINK DIP-14/16

501200B00000G Data Sheet

US $ .25~.35 / Piece | Get Latest Price

Part Number:: 501200B00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$.35
$.31
$.26
$.25

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5012 evaluate
US $.09 - .25 / Piece

Test Points WHITE TEST POINT
5012-0-00-00-00-00-03-0 evaluate
US $.11 - .15 / Piece

IC & Component Sockets PRESS FIT PRINTED CIRCUIT PINS
5012-0-00-01-00-00-03-0 evaluate
US $.23 - .31 / Piece

IC & Component Sockets DOUBLE TAIL HEADER

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Adhesive
Heatsink Material :	Aluminum	Fin Style :	Straight
Thermal Resistance :	68 C / W	Length :	18.542 mm
Width :	6.35 mm	Height :	4.826 mm
Designed for :	DIP-14, DIP-16

Description

Product : Heatsinks
Heatsink Material : Aluminum
Fin Style : Straight
Mounting Style : Adhesive
Width : 6.35 mm
Height : 4.826 mm
Designed for : DIP-14, DIP-16
Thermal Resistance : 68 C / W
Length : 18.542 mm

Pinout

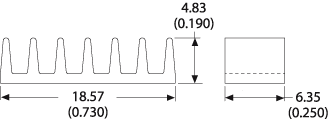

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
501200B00000G	Extruded epoxy attach heat sink with straight fins	Black Anodize	N/A

Description

Thermal Resistance

68.00

Thermal resistance value of 501200B00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	501200B00000G
Vendor	Aavid Thermalloy
Category	Fans, Thermal Management
Attachment Method	Thermal Tape, Adhesive (Not Included)
Height	0.190" (4.83mm)
Material	Aluminum
Package Cooled	14-DIP and 16-DIP
Power Dissipation @ Temperature Rise	0.4W @ 30°C
Thermal Resistance @ Forced Air Flow	50°C/W @ 200 LFM
Outline	18.57mm x 6.35mm
Thermal Resistance @ Natural	68°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	501200B00000G 501200B00000G HS227 ND HS227ND HS227
