501100B00000G

Heat Sinks HEAT SINK DIP-14/16

product image

501100B00000G Picture
See larger image
SeekIC No. : 002532992 Detail

501100B00000G: Heat Sinks HEAT SINK DIP-14/16

501100B00000G Data Sheet

floor Price/Ceiling Price

US $ .26~.33 / Piece | Get Latest Price
Part Number:
501100B00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $.33
  • $.29
  • $.28
  • $.26
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Heatsink Material : Aluminum
Fin Style : Straight Thermal Resistance : 67 C / W
Length : 19.05 mm Width : 6.35 mm
Height : 4.826 mm Designed for : DIP-14, DIP-16

Description

Mounting Style :
Product : Heatsinks
Heatsink Material : Aluminum
Fin Style : Straight
Length : 19.05 mm
Thermal Resistance : 67 C / W
Width : 6.35 mm
Height : 4.826 mm
Designed for : DIP-14, DIP-16


Pinout

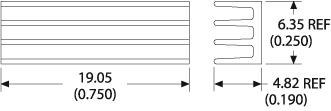

Connection Diagram


Specifications

Part # Description Finish Board Mounting
501100B00000G Extruded epoxy attach heat sink with straight fins Black Anodize N/A



Description

Thermal Resistance 67.00

Thermal resistance value of 501100B00000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information501100B00000G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodThermal Tape, Adhesive (Not Included)
Height0.197" (5mm)
MaterialAluminum
Package Cooled14-DIP and 16-DIP
Power Dissipation @ Temperature Rise0.4W @ 30°C
Thermal Resistance @ Forced Air Flow30°C/W @ 200 LFM
Outline19.05mm x 6.35mm
Thermal Resistance @ Natural67°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 501100B00000G
501100B00000G
