501000J00000G: BOARD LEVEL HEAT SINK

501000J00000G Data Sheet

US $ .13~.13 / Piece | Get Latest Price

Part Number:: 501000J00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
1~7000

Unit Price
$.13

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5010 evaluate
US $.08 - .24 / Piece

Knobs & Dials DIAL
5010/15C SL001 evaluate
US $1954.15 - 1954.15 / Piece

CABLE 22AWG 15COND 1000' UNSHLD
5010/15C SL002 evaluate
US $1900.85 - 1999.17 / Piece

Multi-Conductor Cable 22 AWG 15C UNSHLD 500ft SPOOL SLATE

Product Details

Description

Pinout

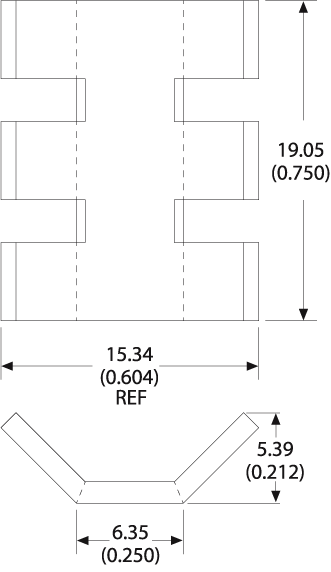

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
501000J00000G	Angle fin heat sink	Pre-Black Anodize	N/A

Description

Thermal Resistance

60.00

Thermal resistance value of 501000J00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	501000J00000G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Thermal Tape, Adhesive (Not Included)
Height	0.212" (5.39mm)
Material	Aluminum
Package Cooled	14-DIP and 16-DIP
Power Dissipation @ Temperature Rise	0.6W @ 40°C
Thermal Resistance @ Forced Air Flow	60°C/W @ 100 LFM
Outline	19.05mm x 15.34mm
Thermal Resistance @ Natural	60°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	501000J00000G 501000J00000G
