501000B00000G

Heat Sinks DIP 14/16 PKG B/A 19.05 X 15.34

product image

501000B00000G Picture
See larger image
SeekIC No. : 002534130 Detail

501000B00000G: Heat Sinks DIP 14/16 PKG B/A 19.05 X 15.34

501000B00000G Data Sheet

floor Price/Ceiling Price

US $ .19~.19 / Piece | Get Latest Price
Part Number:
501000B00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~7300
  • Unit Price
  • $.19
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Through Hole
Heatsink Material : Aluminum Fin Style : Angled
Thermal Resistance : 60 C / W Length : 19.05 mm
Width : 15.34 mm Height : 5.39 mm
Designed for : DIP-14, DIP-16

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Fin Style : Angled
Length : 19.05 mm
Thermal Resistance : 60 C / W
Designed for : DIP-14, DIP-16
Width : 15.34 mm
Height : 5.39 mm


Pinout

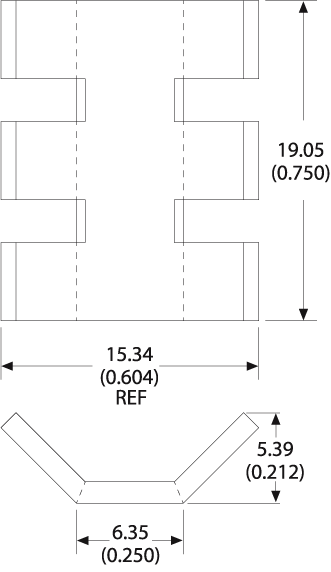

Connection Diagram


Specifications

Part # Description Finish Board Mounting
501000B00000G Angle fin heat sink Black Anodize N/A



Description

Thermal Resistance 60.00

Thermal resistance value of 501000B00000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information501000B00000G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodThermal Tape, Adhesive (Not Included)
Height0.212" (5.39mm)
MaterialAluminum
Package Cooled14-DIP and 16-DIP
Power Dissipation @ Temperature Rise0.6W @ 40°C
Thermal Resistance @ Forced Air Flow60°C/W @ 100 LFM
Outline19.05mm x 15.34mm
Thermal Resistance @ Natural60°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 501000B00000G
501000B00000G
