SeekIC No. : 002534164 Detail

500503B00000G: Heat Sinks TO-3 SQ BSKT B/A 63.50 X 20.86

500503B00000G Data Sheet

US $ 1.46~1.46 / Piece | Get Latest Price

Part Number:: 500503B00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~2225

Unit Price
$1.46

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5005 evaluate
US $.08 - .23 / Piece

Knobs & Dials DIAL
50050 evaluate
US $19.66 - 23.58 / Piece

Enclosures, Boxes, & Cases 18-1/2 x 15-9/16 x 5 (9.32cf)
5005-0 evaluate
US $.1 - .1 / Piece

REPLENISHMENT DECAL "0" ORG/BLK

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Screw
Heatsink Material :	Aluminum	Fin Style :	Slanted
Thermal Resistance :	4.9 C / W	Length :	63.5 mm
Width :	63.5 mm	Height :	20.86 mm
Designed for :	TO-3

Description

Product : Heatsinks
Mounting Style : Screw
Heatsink Material : Aluminum
Designed for : TO-3
Width : 63.5 mm
Fin Style : Slanted
Thermal Resistance : 4.9 C / W
Length : 63.5 mm
Height : 20.86 mm

Pinout

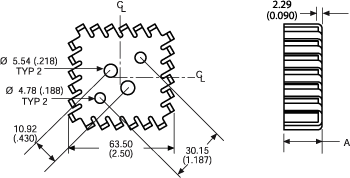

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
500503B00000G	Square Basket heat sink featuring slanted fins	Black Anodize	N/A

Description

Thermal Resistance

4.90

Thermal resistance value of 500503B00000G is based on a 75C rise in natural convection
