4715MS-12T-B20-A00, US $ 5.01-9.82, 4715MS-12T-B20-A00 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003438513 Detail

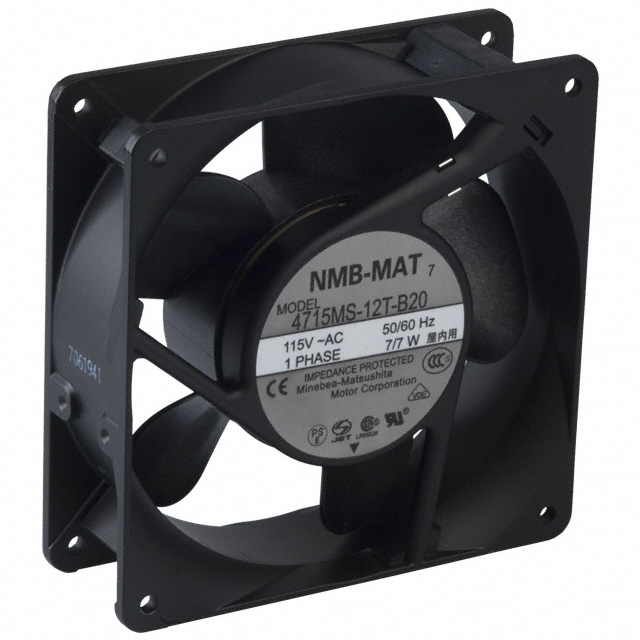

4715MS-12T-B20-A00: FAN AC AXIAL 115V 119X38 1950RPM

4715MS-12T-B20-A00 Data Sheet

US $ 5.01~9.82 / Piece | Get Latest Price

Part Number:: 4715MS-12T-B20-A00
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000

Unit Price
$9.82
$8.98
$7.52
$6.89
$6.06
$5.64
$5.22
$5.01

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

47150 evaluate
US $604.78 - 647.96 / Piece

Hand Tools CRIMP TOOL
47150-0002 evaluate
Memory Card Connectors 1.00MM HDR 26P TOP PUSH/PUSH
47150-0003 evaluate
US $3.14 - 4.2 / Piece

Memory Card Connectors 1.00MM EJT 26P TOP PUSH/PUSH

Product Details

Quick Details

Series:	4715MS	Manufacturer:	NMB Technologies Corporation
Air Flow:	67.0 CFM (1.89m³/min)	Bearing Type:	Ball
Fan Type:	Tubeaxial	Features:	-
Noise:	30 dB	Breakdown Voltage :	8.5 V
Power (Watts):	7W	RPM:	1950 RPM
Size / Dimension:	Square - 119mm L x 119mm H x 38mm W	Static Pressure:	0.098 in H2O (24.5 Pa)
Termination:	2 Terminals	Voltage - Rated:	115VAC

Description

Bearing Type: Ball
Fan Type: Tubeaxial
Features: -
Voltage - Rated: 115VAC
Power (Watts): 7W
Termination: 2 Terminals
Weight: 1.2 lbs (544.3g)
Manufacturer: NMB Technologies Corporation
Size / Dimension: Square - 119mm L x 119mm H x 38mm W
Series: 4715MS
Air Flow: 67.0 CFM (1.89m³/min)
Noise: 30 dB
RPM: 1950 RPM
Static Pressure: 0.098 in H2O (24.5 Pa)

Parameters:

Technical/Catalog Information	4715MS-12T-B20-A00
Vendor	NMB Technologies Corporation
Category	Fans, Thermal Management
Air Flow	67.0 CFM (1.89m³/min)
Bearing Type	Ball
Fan Type	Tubeaxial
Noise	30 dB
Power (Watts)	7W
Size / Dimension	Square - 119mm L x 119mm H x 38mm W
Static Pressure	0.098 in H2O (24.5 Pa)
Termination	2 Terminals
Voltage Rating	115VAC
RPM	1950 RPM
Weight	1.2 lbs (544.31g)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	4715MS 12T B20 A00 4715MS12TB20A00 P12892 ND P12892ND P12892
