42M100B1B

STEPPER MOTOR 5VDC 3.6DEG BI

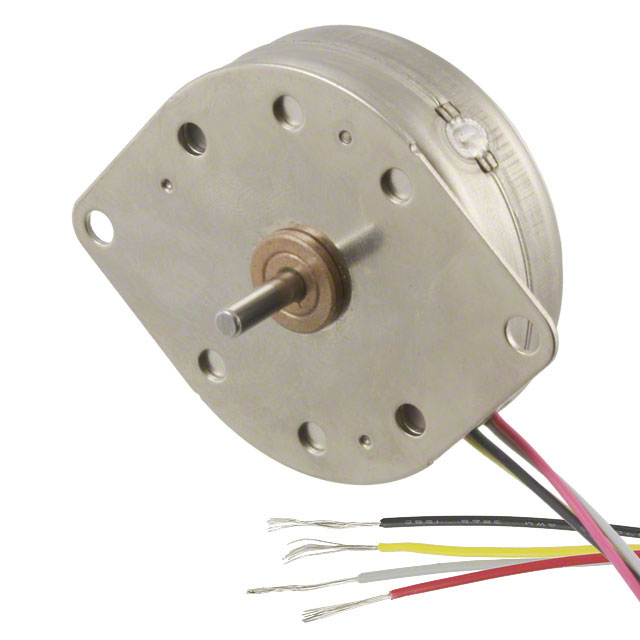

product image

42M100B1B Picture
See larger image
SeekIC No. : 003604627 Detail

42M100B1B: STEPPER MOTOR 5VDC 3.6DEG BI

42M100B1B Data Sheet

floor Price/Ceiling Price

US $ 9.58~15.32 / Piece | Get Latest Price
Part Number:
42M100B1B
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~50
  • 50~100
  • 100~250
  • Unit Price
  • $15.32
  • $13.03
  • $11.49
  • $10.34
  • $9.58
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: 42M Manufacturer: Portescap
Type: Standard Supply Voltage - Min : 8 V
Coil Type: Bi-Polar Voltage - Rated: 5VDC
Steps per Revolution: 100 Step Angle: 3.6°
Torque - Holding (oz-in / mNm): - Diameter - Body: 1.65" (42.00mm)
Diameter - Shaft: 0.118" (3.00mm) Length - Shaft and Bearing: 0.450" (11.43mm)
Mounting Hole Spacing: 1.95" (49.48mm)

Description

Type: Standard
Manufacturer: Portescap
Coil Type: Bi-Polar
Voltage - Rated: 5VDC
Diameter - Shaft: 0.118" (3.00mm)
Diameter - Body: 1.65" (42.00mm)
Mounting Hole Spacing: 1.95" (49.48mm)
Torque - Holding (oz-in / mNm): -
Length - Lead Wire: 12.00" (304.80mm)
Series: 42M
Steps per Revolution: 100
Step Angle: 3.6°
Length - Shaft and Bearing: 0.450" (11.43mm)


Parameters:

Technical/Catalog Information42M100B1B
VendorPortescap Danaher Motion US LLC
CategoryMotors, Solenoids, Driver Boards/Modules
Voltage - Rated 5VDC
TypeStandard
Holding Torque (oz-in / mNm)-
Step Angle3.6°
Steps per Revolution100
Diameter - Body1.65" (42.01mm)
Diameter - Shaft0.118" (3.00mm)
Lead Length12.00" (304.80mm)
Mounting Hole Spacing1.95" (49.48mm)
Coil TypeBi-Polar
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 42M100B1B
42M100B1B
403 1012 ND
4031012ND
403-1012
