42M048C2U, US $ 10.09-16.14, 42M048C2U DataSheet download, circuit diagram from SeekIC.com

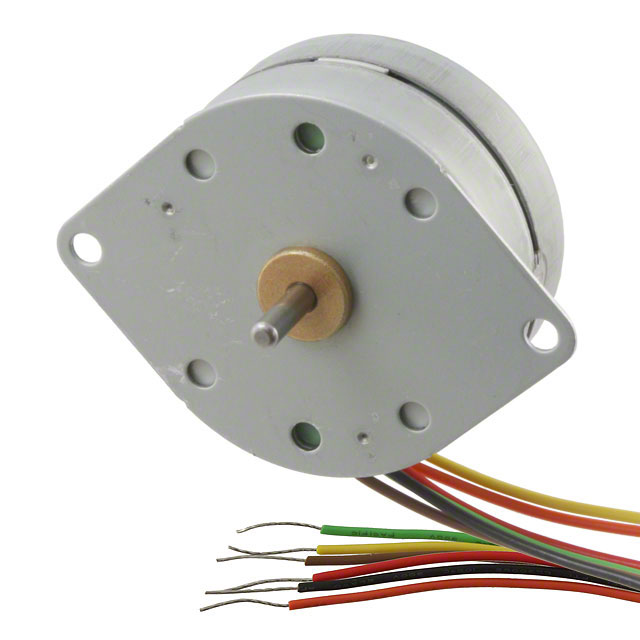

See larger image

SeekIC No. : 003604625 Detail

42M048C2U: STEPPER MOTOR 12VDC 7.5DEG UNI

42M048C2U Data Sheet

US $ 10.09~16.14 / Piece | Get Latest Price

Part Number:: 42M048C2U
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~250

Unit Price
$16.14
$13.72
$12.11
$10.89
$10.09

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

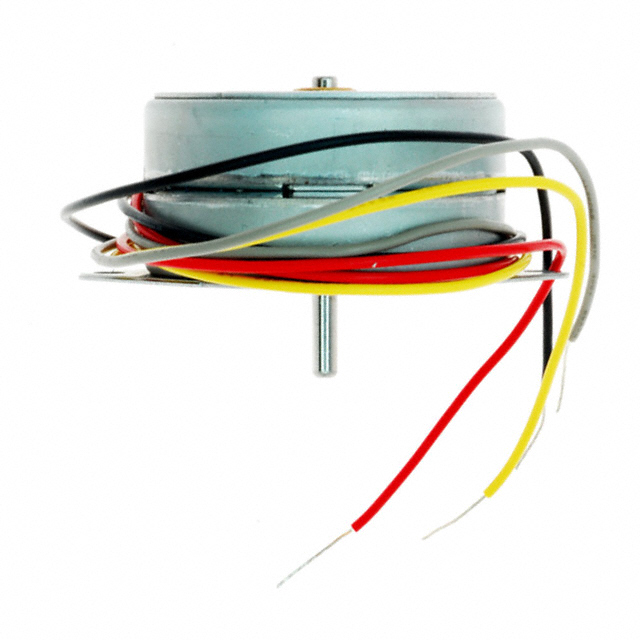

42M048C1B evaluate
US $9.59 - 15.34 / Piece

STEPPER MOTOR 5VDC 7.5DEG BI
42M048C1B-R16 evaluate
US $29.8 - 29.8 / Piece

42MM STEPPER MOTOR 5VDC
42M048C1B-Z36 evaluate
US $20.78 - 33.25 / Piece

STEP MOT GEARED 5VDC 0.15DEG BI

Product Details

Quick Details

Series:	42M	Manufacturer:	Portescap
Type:	Standard	Coil Type:	Unipolar
Supply Voltage - Min :	8 V	Voltage - Rated:	12VDC
Steps per Revolution:	48	Step Angle:	7.5°
Torque - Holding (oz-in / mNm):	9.4 / 66.2	Diameter - Body:	1.65" (42.00mm)
Diameter - Shaft:	0.118" (3.00mm)	Length - Shaft and Bearing:	0.450" (11.43mm)
Mounting Hole Spacing:	1.95" (49.48mm)

Description

Type: Standard
Coil Type: Unipolar
Manufacturer: Portescap
Steps per Revolution: 48
Step Angle: 7.5°
Voltage - Rated: 12VDC
Diameter - Shaft: 0.118" (3.00mm)
Diameter - Body: 1.65" (42.00mm)
Mounting Hole Spacing: 1.95" (49.48mm)
Length - Lead Wire: 12.00" (304.80mm)
Series: 42M
Length - Shaft and Bearing: 0.450" (11.43mm)
Torque - Holding (oz-in / mNm): 9.4 / 66.2

Parameters:

Technical/Catalog Information	42M048C2U
Vendor	Portescap Danaher Motion US LLC
Category	Motors, Solenoids, Driver Boards/Modules
Voltage - Rated	12VDC
Type	Standard
Holding Torque (oz-in / mNm)	9.4 / 66.2
Step Angle	7.5°
Steps per Revolution	48
Diameter - Body	1.65" (42.01mm)
Diameter - Shaft	0.118" (3.00mm)
Lead Length	12.00" (304.80mm)
Mounting Hole Spacing	1.95" (49.48mm)
Coil Type	Unipolar
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	42M048C2U 42M048C2U 403 1010 ND 4031010ND 403-1010
