Product Details

Description



Features:

• 0.5 MICRON CMOS Technology
• Guaranteed low skew < 500ps (max.)
• Very low duty cycle distortion < 600ps (max.)
• Low CMOS power levels
• TTL compatible inputs and outputs
• TTL level output voltage swings
• High drive: -32mA IOH, +48mA IOL
• Two independent output banks with 3-state control
• 1:5 fanout per bank
• "Heartbeat" monitor output
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using
machine model (C = 200pF, R = 0)
• Available in the following packages:
Commercial: QSOP, SOIC, SSOP
Military: CERDIP, LCC

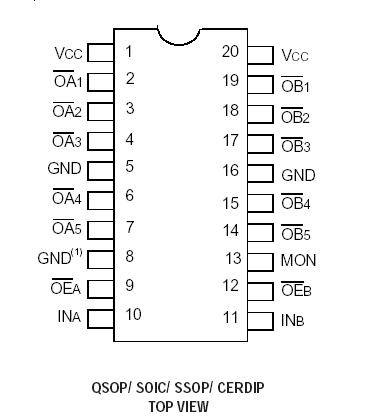

Pinout

Connection Diagram
NOTE:
1. Pin 8 is internally connected to GND. To insure compatibility with all products, pin
8 should be connected to GND at the board level.


Specifications

Symbol
Rating
Commercial
& Industrial
Unit
VTERM(3)
Terminal Voltage with Respect to GND
0.5 to VCC+0.5
V
TSTG
Storage Temperature
65 to +150
°C
IOUT
DC Output Current
60 to +120
mA

NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.


Description

This FCT806T buffer/clock driver is built using advanced dual metal CMOS technology. The FCT806T is an inverting clock driver consisting of two banks of drivers. Each bank drives five TTL output buffers from a standard TTL compatible input. This part has extremely low output skew, pulse skew, and package skew. The FCT806T has a "heart-beat" monitor for diagnostics and PLL driving. The monitor output is identical to all other outputs and complies with the output specifications in this document.

The FCT806T is designed for fast, clean edge rates to provide accurate clock distribution in high speed systems.
