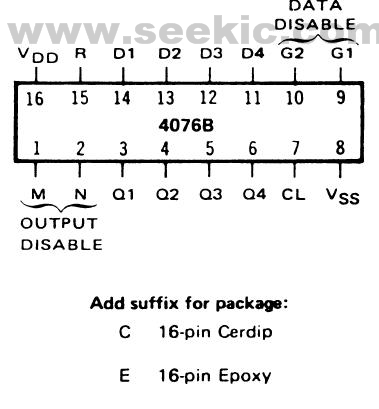

4076B

      The 4076B 4-bit register is designed to consist of four D-type flip-flops operating stnchronously from a common cloce.The OR-gated output disable inputs force the outputs into a high-impedance state for use in bus-organized systems.OR-gated data disable inputs cause the Q outputs to be fed back to the D inputs of the flip-flops.Thus,they are inhibited from changing state while the clocking process remains undisturbed.To clear all four flip-flops simultaneously independent if the clock or disable inputs an asynchronous master reset is provided.
      4076B has four features.The first one is about its 3-state outputs which would be with gated control lines.The second one is that it would have the fully independent clock.The third one is that 4076B would have the feature of asynchronous reset.The last one is that it would have a fully static operation which means DC to to 12MHz @ 10 Vdc.
      Some recommended operating conditions of 4076B have been concluded into several points.For maximum reliability,The DC supply voltage which also marked as Vdd or Vss would be from 3 to 15 Vdc.Then the operating temperature,which also be marked as Ta,would be from -55 to +125°C for C and would be from -40 to 85°C for E.Also some electrical characteristics about 4076B which is about its quiescent device current which also be marked as Idd.When Vdd(Vdc) = 5 it would have a maximum of 5 uAdc at T(low) and have a typical of 0.05 uAdc and a maximum of 5 uAdc at the room tempreture of +25°C and  have a maximum of 150 uAdc at T(high). When Vdd(Vdc) = 10 4076B would have a maximum of 10 uAdc at T(low) and have a typical of 0.1 uAdc and a maximum of 10 uAdc at the room tempreture of +25°C and  have a maximum of 300 uAdc at T(high). When Vdd(Vdc) = 15 it would have a maximum of 20 uAdc at T(low) and have a typical of 0.2 uAdc and a maximum of 20 uAdc at the room tempreture of +25°C and  have a maximum of 600 uAdc at T(high).
