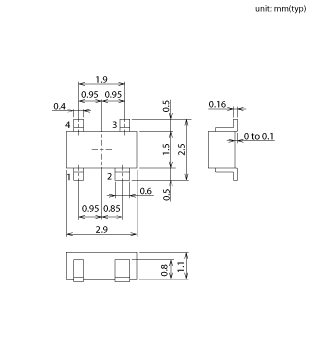

PinoutSpecifications Absolute maximum ratingsVDSS VDS [V]15VGSS VGS [V]±8ID [mA]30PD [mW]200 Electrical characteristicsIDSS min [mA]2.5IDSS max [mA]24VDS [V]6|yfs| typ [mS]14VDS [V]6f [kHz]1Ciss typ [pF]2.7VDS [V]6f [MHz]1Crss typ [pF]0.015VDS [V]6f [MHz]1NF typ [dB]1.1VDS [V]6ID [mA]1...
3SK263: PinoutSpecifications Absolute maximum ratingsVDSS VDS [V]15VGSS VGS [V]±8ID [mA]30PD [mW]200 Electrical characteristicsIDSS min [mA]2.5IDSS max [mA]24VDS [V]6|yfs| typ [mS]14VDS [V]6f [k...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Absolute maximum ratings | |
---|---|
VDSS VDS [V] | 15 |
VGSS VGS [V] | ±8 |
ID [mA] | 30 |
PD [mW] | 200 |
Electrical characteristics | |
---|---|
IDSS min [mA] | 2.5 |
IDSS max [mA] | 24 |
VDS [V] | 6 |
|yfs| typ [mS] | 14 |
VDS [V] | 6 |
f [kHz] | 1 |
Ciss typ [pF] | 2.7 |
VDS [V] | 6 |
f [MHz] | 1 |
Crss typ [pF] | 0.015 |
VDS [V] | 6 |
f [MHz] | 1 |
NF typ [dB] | 1.1 |
VDS [V] | 6 |
ID [mA] | 10 |
f [MHz] | 200 |
