Bridge Rectifiers 1000V 2A BRIDGE
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Product : | Single Phase Bridge | Peak Reverse Voltage : | 1000 V |
Maximum RMS Reverse Voltage : | 700 V | Forward Continuous Current : | 2 A |
Max Surge Current : | 60 A | Forward Voltage Drop : | 1.1 V |
Maximum Reverse Leakage Current : | 5 uA | Power Dissipation : | 4.7 W |
Maximum Operating Temperature : | + 150 C | Length : | 15.24 mm |
Width : | 5.08 mm | Height : | 12.7 mm |
Mounting Style : | Through Hole | Package / Case : | SIP-4 |
Packaging : | Tube |
Symbol |
Parameter | Value | Units | ||||||
005M | 01M | 02M | 04M | 06M | 08M | 10M | |||
253 | 254 | 255 | 256 | 257 | 258 | 259 | |||
VRRM |
Maximum Repetitive Reverse Voltage | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
VRMS |
Maximum RMS Bridge Input Voltage | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
VR |
DC Reverse Voltage (Rated VR ) | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
IF(AV) |
Average Rectified Forward Current, @ TA= 50 |
2.0 | A | ||||||
IFSM |
Non-repetitive Peak Forward Surge Current | 60 | A | ||||||
Tstg |
Storage Temperature Range | -55 to +165 | |||||||
TJ | Operating Junction Temperature | -55 to +165 |

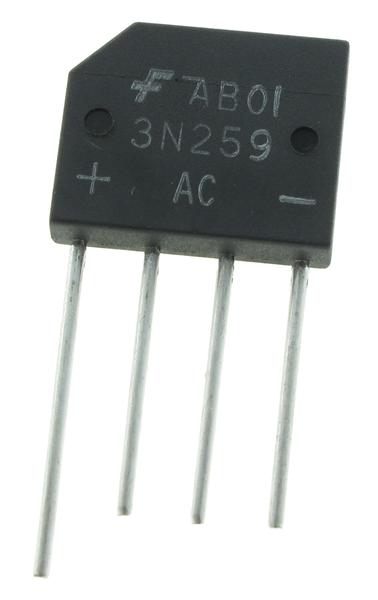

Technical/Catalog Information | 3N259 |
Vendor | Fairchild Semiconductor |
Category | Discrete Semiconductor Products |
Diode Type | Single Phase |
Package / Case | KBPM |
Packaging | Tube |
Reverse Recovery Time (trr) | - |
Speed | Standard Recovery >500ns, > 200mA (Io) |
Current - DC Forward (If) | 2A |
Voltage - Peak Reverse (Max) | 1000V |
Mounting Type | Through Hole |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | 3N259 3N259 |
