3FTL680, US $ 1.28-2.47, 3FTL680 DataSheet download, circuit diagram from SeekIC.com

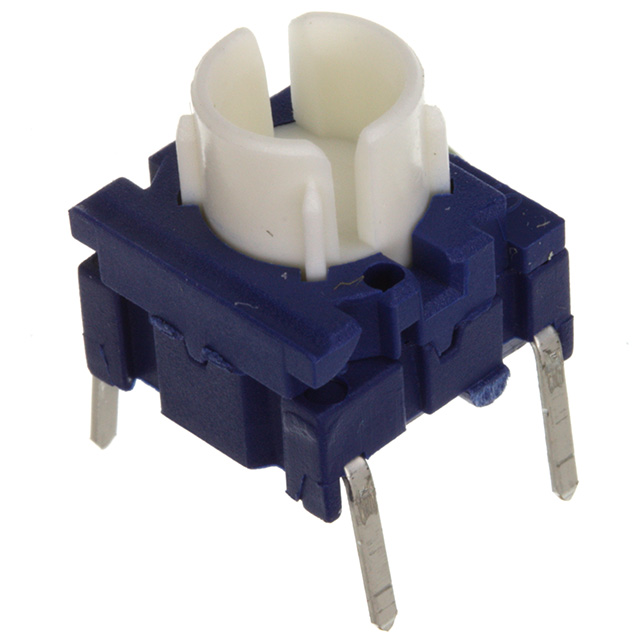

See larger image

SeekIC No. : 004172762 Detail

3FTL680: SWITCH TACTILE SPST-NO 0.05A 24V

3FTL680 Data Sheet

US $ 1.28~2.47 / Piece | Get Latest Price

Part Number:: 3FTL680
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000
1000~5000

Unit Price
$2.47
$2.37
$2.17
$2.08
$1.98
$1.73
$1.68
$1.43
$1.28

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

3FTL6 evaluate
US $.65 - 1.33 / Piece

SWITCH TACTILE SPST-NO 0.05A 24V
3FTL600 evaluate
US $2.66 - 4.91 / Piece

SWITCH TACTILE SPST-NO 0.05A 24V
3FTL620 evaluate
US $1.28 - 2.47 / Piece

SWITCH TACTILE SPST-NO 0.05A 24V

Product Details

Quick Details

Series:	Multimec®	Manufacturer:	MEC Switches
Circuit:	SPST-NO	Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 24VDC	Actuator Type:	Plunger for Cap
Package / Case :	SO-28	Mounting Type:	Through Hole
Actuator Height off PCB, from Pins:	10.40mm	Actuator Orientation:	Top Actuated
Termination Style:	PC Pin	Outline:	10.10mm x 10.10mm
Illumination:	Illuminated	Illumination Voltage (Nominal):	2 VDC
Illumination Type, Color:	LED, Red	Operating Force:	300gf
Ingress Protection:	IP67 - Dust Tight, Waterproof	Features:	Sealed - Flux Protection

Description

Circuit: SPST-NO
Switch Function: Off-Mom
Mounting Type: Through Hole
Actuator Orientation: Top Actuated
Termination Style: PC Pin
Actuator Type: Plunger for Cap
Operating Force: 300gf
Ingress Protection: IP67 - Dust Tight, Waterproof
Contact Rating @ Voltage: 0.05A @ 24VDC
Packaging: Tube
Illumination: Illuminated
Illumination Type, Color: LED, Red
Illumination Voltage (Nominal): 2 VDC
Features: Sealed - Flux Protection
Series: Multimec®
Manufacturer: MEC Switches
Outline: 10.10mm x 10.10mm
Actuator Height off PCB, from Pins: 10.40mm

Parameters:

Technical/Catalog Information	3FTL680
Vendor	MEC Switches
Category	Switches
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05A @ 24VDC
Mounting Type	Through Hole
Operating Force	300gf
Orientation	Vertical
Outline	10.10mm x 10.10mm
Switch Function	Off-Mom
Illumination	Illuminated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	3FTL680 3FTL680 679 2232 ND 6792232ND 679-2232
