3EZ13D5RLG

Zener Diodes D041 REG 3W 13V TR

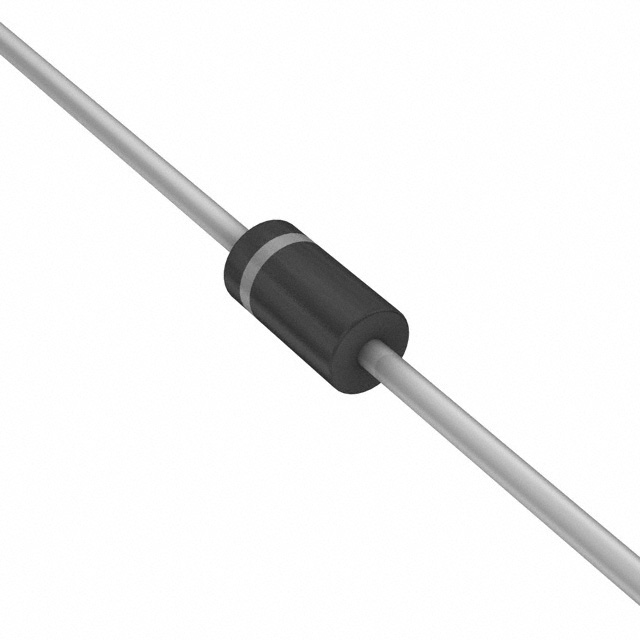

product image

3EZ13D5RLG Picture
See larger image
SeekIC No. : 00276322 Detail

3EZ13D5RLG: Zener Diodes D041 REG 3W 13V TR

3EZ13D5RLG Data Sheet

floor Price/Ceiling Price

US $ .15~.17 / Piece | Get Latest Price
Part Number:
3EZ13D5RLG
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~3850
  • 3850~6000
  • 6000~12000
  • Unit Price
  • $.17
  • $.16
  • $.15
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Zener Voltage : 13 V Voltage Tolerance : 5 %
Zener Current : 208 mA Power Dissipation : 3000 mW
Maximum Reverse Leakage Current : 0.5 uA Maximum Zener Impedance : 4.5 Ohms
Maximum Operating Temperature : + 200 C Mounting Style : Through Hole
Package / Case : DO-41 Packaging : Reel

Description

Voltage Temperature Coefficient :
Voltage Tolerance : 5 %
Packaging : Reel
Maximum Zener Impedance : 4.5 Ohms
Maximum Reverse Leakage Current : 0.5 uA
Zener Voltage : 13 V
Maximum Operating Temperature : + 200 C
Mounting Style : Through Hole
Package / Case : DO-41
Power Dissipation : 3000 mW
Zener Current : 208 mA


Parameters:

Technical/Catalog Information3EZ13D5RLG
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
Voltage - Zener (Nom) (Vz)13V
Power - Max3W
Impedance (Max) (Zzt)4.5 Ohm
Voltage - Forward (Vf) (Max) @ If1.5V @ 200mA
Current - Reverse Leakage @ Vr500nA @ 9.9V
Tolerance±5%
Mounting TypeThrough Hole, Axial
Package / CaseDO-41, Axial
PackagingTape & Reel (TR)
Operating Temperature-65°C ~ 200°C
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 3EZ13D5RLG
3EZ13D5RLG
