3D7408

Features:

·  All-silicon, low-power CMOS technology
·  TTL/CMOS compatible inputs and outputs
·  Vapor phase, IR and wave solderable
·  Auto-insertable (DIP pkg.)
·  Low ground bounce noise
·  Leading- and trailing-edge accuracy
·  Increment range: 0.25 through 5.0ns
·  Delay tolerance: 1% (See Table 1)
·  Temperature stability: ±3% typical (0C-70C)
·  Vdd stability: ±1% typical (4.75V-5.25V)
·  Minimum input pulse width: 10% of total delay
·  Programmable via 3-wire serial or 8-bit parallel interface

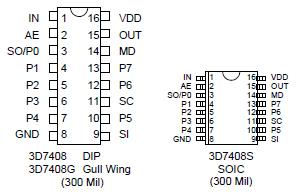

Pinout

PIN DESCRIPTIONS
IN          Signal Input
OUT       Signal Output
MD         Mode Select
AE          Address Enable
P0-P7    Parallel Data Input
SC         Serial Clock
SI          Serial Data Input
SO         Serial Data Output
VCC       +5 Volts
GND      Ground

Specifications

PARAMETER	SYMBOL	MIN	MAX	UNITS	NOTES
DC Supply Voltage	VDD	-0.3	7.0	V
Input Pin Voltage	VIN	-0.3	VDD+0.3	V
Input Pin Current	IIN	-1.0	1.0	mA	25C
Storage Temperature	TSTRG	-55	150	C	10 sec
Lead Temperature	TLEAD		300	C

Description

The 3D7408 Quadruple Delay Line product family consists of fixeddelay CMOS integrated circuits. Each package contains four matched,independent delay lines. Delay values can range from 10ns through 500ns. The input is reproduced at the output without inversion, shifted in time as per the user-specified dash number. The 3D7304 is TTLand CMOS-compatible, capable of driving ten 74LS-type loads, and features both rising- and falling-edge accuracy.

The all-CMOS 3D7408 integrated circuit has been designed as a reliable, economic alternative to hybrid TTL fixed delay lines. It is offered in a standard 14-pin auto-insertable DIP and a space saving surface mount 14-pin SOIC.
