3D3428

Features:

• All-silicon, low-power CMOS technology
• 3.3V CMOS compatible inputs and outputs
• Vapor phase, IR and wave solderable
• Auto-insertable (DIP pkg.)
• Leading- and trailing-edge accuracy
• Programmable via serial or parallel interface
• Increment range: 0.25 through 15.0ns
• Delay tolerance: 0.5% (See Table 1)
• Supply current: 2mA typical
• Temperature stability: ±1.5% max (-40C to 85C)
• Vdd stability: ±1.0% max (3.0V to 3.6V)

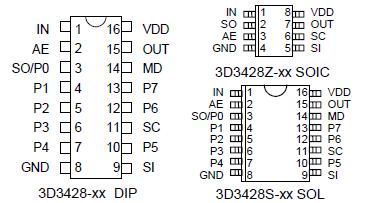

Pinout

PIN DESCRIPTIONS
IN                                 Signal Input
OUT                              Signal Output
MD                                Mode Select
AE                                 Address Enable
P0-P7                            Parallel Data Input
SC                                 Serial Clock
SI                                  Serial Data Input
SO                                 Serial Data Output
VDD                               +3.3 Volts
GND                               Ground

Specifications

PARAMETER	SYMBOL	MIN	MAX	UNITS	NOTES
DC Supply Voltage	VDD	-0.3	7.0	V
Input Pin Voltage	VIN	-0.3	VDD+0.3	V
Input Pin Current	IIN	-1.0	1.0	mA	25C
Storage Temperature	TSTRG	-55	150	C	10 sec
Lead Temperature	TLEAD		300	C

Description

The 3D3428 device is a versatile 8-bit programmable monolithic delay line. The input (IN) is reproduced at the output (OUT) without inversion, shifted in time as per the user selection. Delay values, programmed either via the serial or parallel interface, can be varied over 255 equal steps according to the formula:
             T_i,nom = T_inh + i * T_inc
where i is the programmed address, Tinc is the delay increment (equal to the device dash number), and Tinh is the inherent (address zero) delay. The device features both rising- and falling-edge accuracy.
