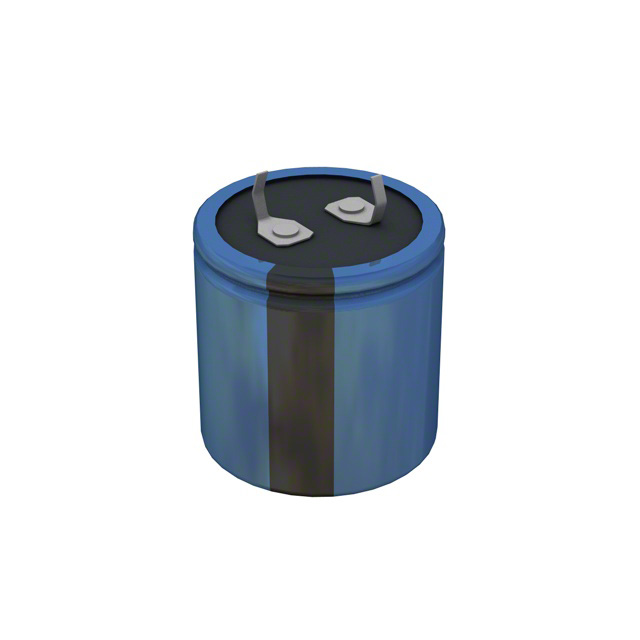

381LQ102M180K022: CAP ALUM 1000UF 180V 20% SNAP

381LQ102M180K022 Data Sheet

US $ 1.76~1.76 / Piece | Get Latest Price

Part Number:: 381LQ102M180K022
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~200

Unit Price
$1.76

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

381L evaluate
DescriptionThe type 381L is designed as 105°C high-ripple snap-in with 2 pins.Adding longer-life a...
381L/LX evaluate
Description381L/LX High Ripple, Snap-in
381L100 evaluate
US $11.55 - 13.12 / Piece

Potentiometers POT 100 OHM 1W W/LOCK BUSHING

Product Details

Quick Details

Series:	381LQ	Manufacturer:	Cornell Dubilier Electronics (CDE)
Capacitance:	1000µF	Dimensions :	196 mm L x 12.5 mm W
Voltage Rating:	180V	Tolerance:	±20%
Lifetime @ Temp.:	2000 Hrs @ 105°C	Operating Temperature:	-40°C ~ 105°C
Features:	General Purpose	Ripple Current:	2.2A
ESR (Equivalent Series Resistance):	199 mOhm	Impedance:	-
Mounting Type:	Through Hole	Package / Case:	Radial, Can - Snap-In
Size / Dimension:	1.181" Dia (30.00mm)	Height - Seated (Max):	1.181" (30.00mm)
Lead Spacing:	0.394" (10.00mm)	Surface Mount Land Size:	-

Description

Tolerance: ±20%
Features: General Purpose
Impedance: -
Mounting Type: Through Hole
Surface Mount Land Size: -
Operating Temperature: -40°C ~ 105°C
Lifetime @ Temp.: 2000 Hrs @ 105°C
Capacitance: 1000µF
Packaging: Bulk
Height - Seated (Max): 1.181" (30.00mm)
Package / Case: Radial, Can - Snap-In
Lead Spacing: 0.394" (10.00mm)
Ripple Current: 2.2A
Size / Dimension: 1.181" Dia (30.00mm)
ESR (Equivalent Series Resistance): 199 mOhm
Manufacturer: Cornell Dubilier Electronics (CDE)
Voltage Rating: 180V
Series: 381LQ

Parameters:

Technical/Catalog Information	381LQ102M180K022
Vendor	Cornell Dubilier Electronics (CDE)
Category	Capacitors
Capacitance	1000F
ESR (Equivalent Series Resistance)	-
Features	General Purpose
Lifetime @ Temp.	2000 Hrs @ 105°C
Maximum Temperature	-40°C ~ 105°C
Size / Dimension	1.181" Dia x 1.181" H (30.00mm x 30.00mm)
Lead Spacing	0.394" (10.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial (Snap-In)
Packaging	Bulk
Tolerance	±20%
Voltage Rating	180V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	381LQ102M180K022 381LQ102M180K022
