Product Details

Description



Features:

·1 STEREO INPUT
·INPUT ATTENUATION CONTROL IN 0.5dB STEP
   - MUTE FUNCTION
·MONO MODE (SRS 3D MONO)
·STEREO MODE (SRS 3D STEREO)
·SPACE AND CENTER ATTENUATORS ARE AVAILABLE
·ALL FUNCTION ARE PROGRAMMABLE VIA SERIAL BUS (I2C BUS)

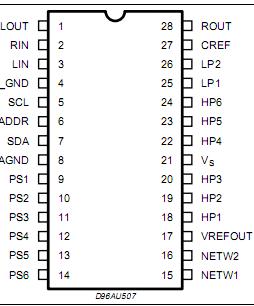

Pinout

Connection Diagram


Specifications

Symbol Parameters Value Unit
VS Operating Supply Voltage 11 V
Tamb Operating Ambient Temperature -10 to 85
Tstg Storage Temperature Range -55 to 150



Description

The 38037 is a SRS (Sound Retrieval System) audio matrix. It reproduces SRS sound process-ing stereo and mono sources both.

The SRS sound is guaranteed by external com-ponents and it is not affected by internal process spreads.

The AC signal setting is obtained by resistor net-works and switches combined with operational amplifiers according to the SRS labs specifica-tion.

Control of all the functions is accomplished by serial bus. Thanks to the used BIPOLAR/CMOS/DMOS technology, Low Distortion, Low Noise and DC stepping are obtained.
