Features: ·VERY HIGH OPERATING VOLTAGE RANGE (±50V)·DMOS POWER STAGE·HIGH OUTPUT POWER (100W @ THD = 10%, RL = 8W, VS = ±40V)·MUTING/STAND-BY FUNCTIONS·NO SWITCH ON/OFF NOISE·VERY LOW DISTORTION·VERY LOW NOISE·SHORT CIRCUIT PROTECTED (WITH NO INPUT SIGNAL APPLIED)·THERMAL SHUTDOWN·CLIP DETECTOR·MO...
38033: Features: ·VERY HIGH OPERATING VOLTAGE RANGE (±50V)·DMOS POWER STAGE·HIGH OUTPUT POWER (100W @ THD = 10%, RL = 8W, VS = ±40V)·MUTING/STAND-BY FUNCTIONS·NO SWITCH ON/OFF NOISE·VERY LOW DISTORTION·VER...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: `Basic machine-language instructions ...................................... 71`Minimum i...

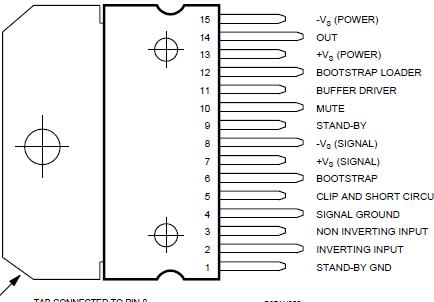

Symbol | Parameter | Value | Unit |
VS | Supply Voltage (No Signal) | ±60 | V |
V1 | VSTAND-BY GND Voltage Referred to -VS (pin 8) | 90 | V |
V2 | Input Voltage (inverting) Referred to -VS | 90 | V |
V2 - V3 | Maximum Differential Inputs | ±30 | V |
V3 | Input Voltage (non inverting) Referred to -VS | 90 | V |
V4 | Signal GND Voltage Referred to -VS | 90 | V |
V5 | Clip Detector Voltage Referred to -VS | 120 | V |
V6 | Bootstrap Voltage Referred to -VS | 120 | V |
V9 | Stand-by Voltage Referred to -VS | 120 | V |
V10 | Mute Voltage Referred to -VS | 120 | V |
V11 | Buffer Voltage Referred to -VS | 120 | V |
V12 | Bootstrap Loader Voltage Referred to -VS | 100 | V |
IO | Output Peak Current | 10 | A |
Ptot | Power Dissipation Tcase = 70°C | 50 | W |
Top | Operating Ambient Temperature Range | 0 to 70 | |
Tstg, Tj | Storage and Junction Temperature | 150 |
The 38033 is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications (Home Stereo, self powered loudspeakers, Topclass TV). Thanks to the wide voltage range and to the high out current capability it is able to supply the highest power into both 4W and 8W loads. The built in muting function with turn on delay simplifies the remote operation avoiding switching on-off noises.
Parallel mode is made possible by connecting more device through of pin11. High output power can be delivered to very low impedance loads, so optimizing the thermal dissipation of the system.
