Features:

` WIDE OPERATING SUPPLY VOLTAGE RANGE FROM 4.5V UP TO 32V FOR TRANSIENT 45V
` VERY LOW STANDBY QUIESCENT CURRENT TYPICALLY < 2A
` INPUT TO OUTPUT SIGNAL TRANSFER FUNCTION PROGRAMMABLE
` HIGH SIGNAL RANGE FROM -14V UP TO 45V FOR ALL INPUTS
` 3.3V CMOS COMPATIBLE INPUTS
` DEFINED OUTPUT OFF STATE FOR OPEN INPUTS
` FOUR OPEN DRAIN DMOS OUTPUTS, WITH R_DSon = 1.5W FOR V_S > 6V AT 25°C
` OUTPUT CURRENT LIMITATION
` CONTROLLED OUTPUT SLOPE FOR LOW EMI
` OVERTEMPERATURE PROTECTION FOR EACH CHANNEL
` INTEGRATED OUTPUT CLAMPING FOR FAST INDUCTIVE RECIRCULATION V_FB> 45V
` STATUS MONITORING FOR
- OVERTEMPERATURE
- DISCONNECTED GROUND OR SUPPLY VOLTAGE

Pinout

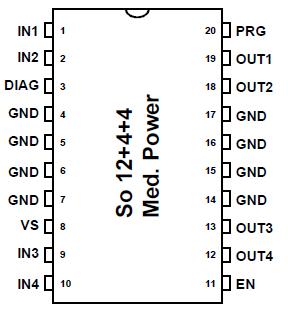

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_S	Supply voltage DC Supply voltage Pulse (T = 400ms)	-0.3 to 32 -0.3 to 45	V V
dV_S/dt	Supply voltage transient	-10 to +10	V/s
V_IN, V_EN, V_PRG	Input, Enable, Programming Pin voltage	-14 to 45	V
V_OUT	Output voltage	-0.3 to 45 ¹⁾	V
V_DIAG	Diagnostic output voltage	-0.3 to 45	V

Note 1) : In flyback phase the output voltage can reach 60V.

Description

The 37978 is a monolithic integrated quad low side driver. It is intended to drive lines, lamps or relais in automotive or industrial applications.
