3540S-1-503, US $ 18.61-22.35 , Bourns, 3540S-1-503 DataSheet download, circuit diagram from SeekIC.com

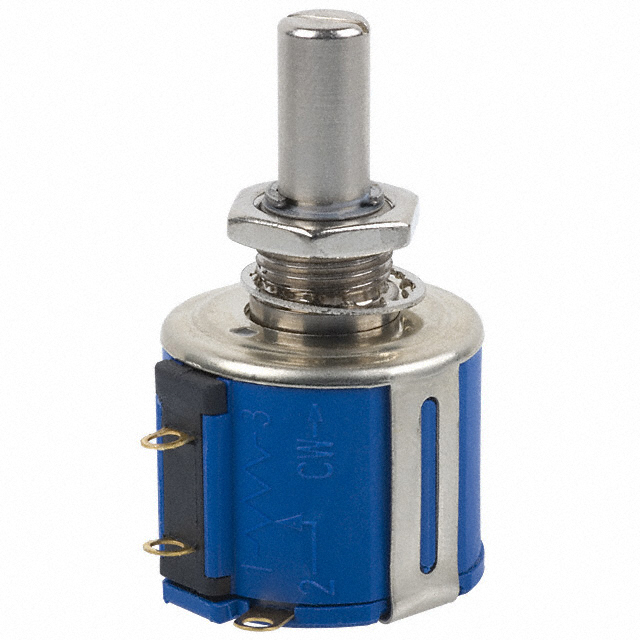

See larger image

SeekIC No. : 001257166 Detail

3540S-1-503: Precision Potentiometers 7/8"WW 50KOHMS 0.25% 10TURNS

3540S-1-503 Data Sheet

US $ 18.61~22.35 / Piece | Get Latest Price

Part Number:: 3540S-1-503
Mfg:: Bourns
Supply Ability:: 5000

Price Break

Qty
0~1
1~5
5~10
10~25

Unit Price
$22.35
$19.42
$19.2
$18.61

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

3540 evaluate
US $.55 - .94 / Piece

Fuseholders, Clips, & Hardware HIGH UL RTG FUSE HOLDER
3540/6 evaluate
Features: SpecificationsDescription The 3540/6 is a kind of ceramic stand-off insulator for RF-Equ...
3540/6...35125/6 evaluate
Description3540/6...35125/6 Ceramic Stand-off Insulators for RF-Equipment

Product Details

Quick Details

Product :	Precision Potentiometer	Mounting Style :	Panel
Number of Turns :	10	Element Type :	Wirewound
Shaft Type :	Slotted	Resistance :	50 KOhms
Termination Style :	Solder Lug	Tolerance :	5 %

Description

Linearity :
Taper :
Voltage Rating :
Product : Precision Potentiometer
Resistance : 50 KOhms
Mounting Style : Panel
Number of Turns : 10
Element Type : Wirewound
Shaft Type : Slotted
Termination Style : Solder Lug
Tolerance : 5 %

Parameters:

Technical/Catalog Information	3540S-1-503
Vendor	Bourns Inc.
Category	Potentiometers, Variable Resistors
Resistance In Ohms	50.0K
Power (Watts)	2W
Number of Turns	10
Adjustment Type	Side Adjustment
Tolerance	±5%
Package / Case	Round - 0.875" Dia x 0.750" H (22.23mm x 19.05mm)
Termination Style	Solder Lug
Actuator Diameter	6.34mm
Actuator Length	20.62mm
Actuator Type	Slotted Shaft
Temperature Coefficient	±50ppm/°C
Resistive Material	Wirewound
Packaging	Bulk
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	3540S 1 503 3540S1503
