Features: The 33981 is a high-frequency self-protected silicon 4.0 m RDS(ON) high-side switch used to replace electromechanical relays, fuses, and discrete devices in power management applications. The 33981 can be controlled by pulse-width modulation (PWM) with a frequency up to 60 kHz. It is designed for harsh environments, and it includes self-recovery features.
The 33981 is suitable for loads with high inrush current, as well as motors and all types of resistive and inductive loads. A dedicated parallel input is available for an external low-side control with protection features and cross-conduction management.
ApplicationThe 33981 is a high-frequency self-protected silicon 4.0 m RDS(ON) high-side switch used to replace electromechanical relays, fuses, and discrete devices in power management applications. The 33981 can be controlled by pulse-width modulation (PWM) with a frequency up to 60 kHz. It is designed for harsh environments, and it includes self-recovery features.
The 33981 is suitable for loads with high inrush current, as well as motors and all types of resistive and inductive loads. A dedicated parallel input is available for an external low-side
control with protection features and cross-conduction management.

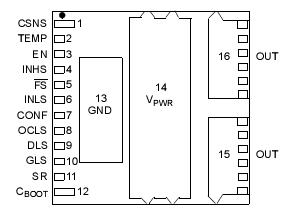

Pinout
Specifications
|
Rating |
Symbol |
Value |
Unit |
|
Power Supply Voltage
Steady-State |
VPWR |
-16 to 41 |
V |
|
Input/Output Terminals Voltage (Note 1) |
VIN |
-0.3 to 7.0 |
V |
|
Output Voltage |
VOUT |
-5.0 to 41 |
V |
|
Continuous Output Current (Note 2) |
IOUT |
40 |
A |
|
CSNS Input Clamp Current |
ICSNS |
10 |
mA |
|
SR Voltage |
VSR |
-0.3 to 54 |
V |
|
Temperature Feedback Voltage |
VTEMP |
-0.3 to 5.0 |
V |
|
C Voltage
BOOT |
CBOOT |
-0.3 to 54 |
V |
|
OCLS Voltage |
VOCLS |
-0.3 to 7.0 |
V |
|
Low-Side Gate Voltage |
VGLS |
-0.3 to 15 |
V |
|
Low-Side Drain Voltage |
VDLS |
-5.0 to 41 |
V |
|
ESD Voltage
Human Body Model (Note 3)
Machine Model (Note 4) |
VESD1
VESD2 |
±2000
±200 |
V |
|
Output Clamp Energy (Note 5) |
ECL |
TBD |
J |
