33897D

Features: ` Waveshaping for Low Electromagnetic Interference (EMI)` Detects and Automatically Handles Loss of Ground` Worst-Case Sleep Mode Current of Only 60 A` Current Limit Prevents Damage Due to Bus Shorts` Built-In Thermal Shutdown on Bus Output` Protected Against Vehicular Electrical Transie...

product image

33897D Picture
See larger image
SeekIC No. : 004228599 Detail

33897D: Features: ` Waveshaping for Low Electromagnetic Interference (EMI)` Detects and Automatically Handles Loss of Ground` Worst-Case Sleep Mode Current of Only 60 A` Current Limit Prevents Damage Due to...

33897D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
33897D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Waveshaping for Low Electromagnetic Interference (EMI)
` Detects and Automatically Handles Loss of Ground
` Worst-Case Sleep Mode Current of Only 60 A
` Current Limit Prevents Damage Due to Bus Shorts
` Built-In Thermal Shutdown on Bus Output
` Protected Against Vehicular Electrical Transients
` Undervoltage Lockout Prevents False Data with Low Battery
` Pb-Free Packaging Designated by Suffix Code EF


Pinout

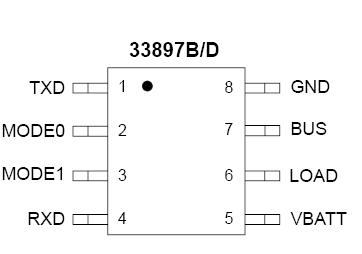

Connection Diagram




Specifications

Rating Symbol Value Unit
Electrical Ratings
Supply Voltage VBATT - 0.3 to 40 V
Input Logic Voltage VIN - 0.3 to 7.0 V
RXD Terminal Voltage VRXD - 0.3 to 7.0 V
CNTL Terminal Voltage (33897/A/C only) VCNTL -0.3 to 40 V
ESD Voltage(2)
Human Body Model
All Terminals Except BUS
BUS Terminal
Machine Model		 VESD ± 2000
± 4000
± 200		 V
THERMAL RATINGS
Ambient Operating Temperature(3) TA

 - 40 to 125 °C
Junction Operating Temperature TJ - 40 to 150 °C
Storage Temperature TSTG - 55 to 150 °C
Junction-to-Ambient Thermal Resistance) RJA 150 °C/W
Peak Package Reflow Temperature During Solder Mounting (4)
D Suffix
EF (Pb-Free) Suffix		 TSOLDER
 245
260		 °C
Notes
2. ESD testing is performed in accordance with the Human Body Model (CZAP = 100 pF, RZAP = 1500 ),
Machine Model (CZAP = 200 pF, RZAP = 0 )
3. When using the 8-terminal device, consider the power dissipation at a high operating voltage and maximum network loading at ambient
temperatures exceeding 85°C.
4. Terminal soldering temperature limit is for 10 second maximum duration. Not designed for immersion soldering. Exceeding these limits
may cause malfunction or permanent damage to the device


Description

The 33897D Series provides a physical layer for digital communications purposes using a Carrier Sense Multiple Access/Collision Resolution (CSMA/CR) data link operating over a single wire medium. This is more commonly referred to as Single Wire Controller Area Network (CAN).

The 33897D Series operates directly from a vehicle's 12 V battery system or a broad range of DC-power sources. It can operate at either low or high (33.33 kbps or 83.33 kbps) data rates. A high-voltage wake-up feature allows the device to control the regulator used in support of the MCU and other logic. The device includes a control terminal that can be used to put the module regulator into Sleep mode. The presence of a defined wake-up voltage level on the bus will reactivate the control line to turn the regulator and the system back on.

The 33897D complies with the GMW3089v2.4 General Motors Corporation specification.
