33883

Features: • VCC Operating Voltage Range from 5.5 V up to 55 V• VCC2 Operating Voltage Range from 5.5 V up to 28 V• CMOS/LSTTL Compatible I/O• 1.0 A Peak Gate Driver Current• Built-In High-Side Charge Pump• Undervoltage Lockout (UVLO)• Overvoltage Lockout (...

product image

33883 Picture
See larger image
SeekIC No. : 004228591 Detail

33883: Features: • VCC Operating Voltage Range from 5.5 V up to 55 V• VCC2 Operating Voltage Range from 5.5 V up to 28 V• CMOS/LSTTL Compatible I/O• 1.0 A Peak Gate Driver Current&#...

33883 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
33883
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• VCC Operating Voltage Range from 5.5 V up to 55 V
• VCC2 Operating Voltage Range from 5.5 V up to 28 V
• CMOS/LSTTL Compatible I/O
• 1.0 A Peak Gate Driver Current
• Built-In High-Side Charge Pump
• Undervoltage Lockout (UVLO)
• Overvoltage Lockout (OVLO)
• Global Enable with <10 µA Sleep Mode
• Supports PWM up to 100 kHz


Pinout

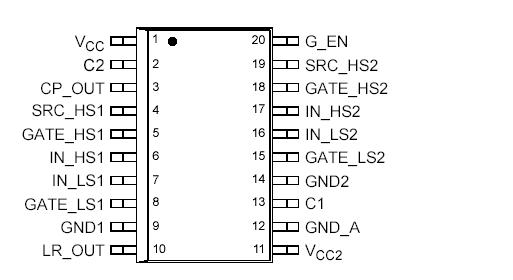

Connection Diagram


Specifications

Rating
Symbol
Value
Unit
Supply Voltage 1
VCC
-0.3 to 65
V
Supply Voltage 2 (Note 1)
VCC2
-0.3 to 65
V
Linear Regulator Output Voltage
VLR_OUT
-0.3 to 18
V
High-Side Floating Supply Absolute Voltage
VCP_OUT
-0.3 to 65
V
High-Side Floating Source Voltage
VSRC_HS
-1.0 to 65
V
High-Side Source Current from CP_OUT in Switch ON State
IS
250
mA
High-Side Gate Voltage
VGATE_HS
-0.3 to 65
V
High-Side Gate Source Voltage
VGATE_HS - VSRC_HS
-0.3 to 20
V
High-Side Floating Supply Gate Voltage
VCP_OUT - VGATE_HS
-0.3 to 65
V
Low-Side Gate Voltage
VGATE_LS
-0.3 to 17
V
Wake-Up Voltage
VG_EN
0.3 to 35
V
Logic Input Voltage
VIN
-0.3 to 10
V
Charge Pump Capacitor Voltage
VC1
-0.3 to VLR_OUT
V
Charge Pump Capacitor Voltage
VC2
-0.3 to 65
V
ESD Voltage
Human Body Model on All Pins (VCC and VCC2 as Two Power
Supplies) (Note 2)
Machine Model (Note 3)
VESD1
VESD2
±1500
±130
V
Power Dissipation and Thermal Characteristics
Maximum Power Dissipation @ 25°C
Thermal Resistance (Junction to Ambient)
Operating Junction Temperature
Storage Temperature
PD
RJA
TJ
TSTG
1.25
100
-40 to 150
-65 to 150
W
°C/W
°C
°C
Terminal Soldering Temperature (Note 4)
TSOLDER
240
°C
