33742S

Features: High-Speed 1.0 Mbps CAN Interface with Bus Diagnostic Capability (Detection of CANH and CANL Short to Ground, to VDD, and to VSUP) Low-Drop Voltage 5.0 V, 200 mA VDD Regulator with Current-Limiting, Overtemperature Pre-Warning, and Output Monitoring with Reset Additional 5.0 V Regulator...

product image

33742S Picture
See larger image
SeekIC No. : 004228521 Detail

33742S: Features: High-Speed 1.0 Mbps CAN Interface with Bus Diagnostic Capability (Detection of CANH and CANL Short to Ground, to VDD, and to VSUP) Low-Drop Voltage 5.0 V, 200 mA VDD Regulator with Curren...

33742S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
33742S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 High-Speed 1.0 Mbps CAN Interface with Bus Diagnostic Capability (Detection of CANH and CANL Short to Ground, to VDD, and to VSUP)
  Low-Drop Voltage 5.0 V, 200 mA VDD Regulator with Current-Limiting, Overtemperature Pre-Warning, and Output Monitoring with Reset
  Additional 5.0 V Regulator with External Series Pass Transistor
  Normal, Standby, Stop, and Sleep Modes with Low Sleep and Stop Mode Current
  150 mA High-Side Switch Output for Control of External Circuitry
  Four External Wake-Up Inputs
  Software-Programmable Watchdog Window, Interrupt, and Reset


Pinout

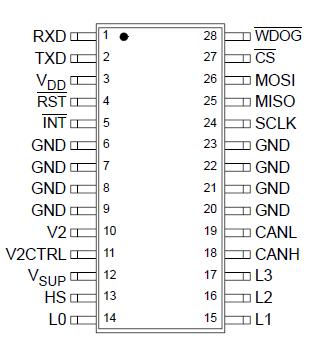

Connection Diagram


Specifications

Rating Symbol Value Unit
ELECTRICAL RATINGS
Power Supply Voltage at VSUP Terminal
Continuous (Steady-State)
Transient Voltage (Load Dump)		 VSUP -0.3 to 27
-0.3 to 40		 V
Logic Inputs (RXD, TXD, MOSI, MISO, CS, SCLK, RST, WDOG, and INT
Terminals)		 VLOG -0.3 to VDD+0.3 V
Output Current at VDD Terminal IDD Internally Limited A
HS Terminal
Voltage
Output Current		 VHS
IHS		 -0.3 to VSUP+0.3
Internally Limited		 V
A
ESD Voltage, Human Body Model (Note 1)
HS, L0, L1, L2, L3, CANH, CANL Terminals
All Other Terminals		 VESD1 ±4000
±2000		 V
ESD Voltage, Machine Model (Note 2) VESD2 ±2000 V
L0, L1, L2, L3 Terminals
DC Input Voltage
DC Input Current
Transient Input Voltage with External Component (Note 3)		 VDCIN
IDCIN
VTRINEC		 -0.3 to 40
±2.0
±100		 V
mA
V
Power Dissipation (Note 4) PD 1.0 W
CANL and CANH Terminals
Continuous Voltage
Continuous Current		 VCANH/L
ICANH/L		 -27 to 40
200		 V
mA
CANH and CANL Transient Voltage (Load Dump) (Note 5) VLDH/L 40 V
CANH and CANL Transient Voltage (Note 6) VTRH/L ±40 V
