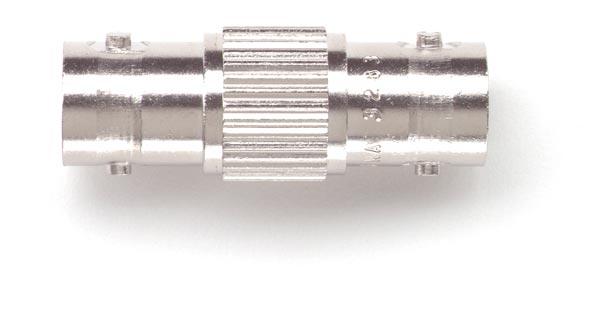

RF Adapters - In Series BNC F/F ADAPTOR
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
RF Series : | BNC | Side 1 Gender : | Jack (Female) |
Side 1 Polarity : | Normal | Side 2 Gender : | Jack (Female) |
Impedance : | 50 Ohms | Adapter Style : | Straight |
Contact Plating : | Gold | Shell Plating : | Nickel |
Body Material : | Brass |
Symmetrical Switch Points
Resistant to Physical Stress
Superior Temperature Stability
Output Short-Circuit Protection
Operation From Unregulated Supply
Reverse Battery Protection
Solid-State Reliability
Small Size
It is strongly recommended that an external bypass capacitor be connected (in close proximity to the Hall sensor) between the supply and ground of the device to reduce both external noise and noise generated by the chopper-stabilization technique.
The simplest form of magnet that will operate these devices is a ring magnet. Other methods of operation, such as linear magnets, are possible. Extensive applications information on magnets and Hall-effect sensors is also available in the Allegro Electronic Data Book AMS-702 or Application Note 27701, or www.allegromicro.com
Supply Voltage, VCC .............................. 26.5 V
Reverse Battery Voltage, VRCC................ -30 V
Magnetic Flux Density, B.....................Unlimited
Output Off Voltage, VOUT......................... 26 V
Continuous Output Current,
IOUT............................... Internally Limited
Reverse Output Current, IOUT ............. -50 mA
Package Power Dissipation, PD. See Graph
Junction Temperature, TJ .................. +170°C
Operating Temperature Range, TA
Suffix 'E'................... -40°C to +85°C
Suffix 'L'................. -40°C to +150°C
Storage Temperature Range,
TS ................................. -65°C to +170°C
