321527B00000G

Heat Sinks TO-5 HEATSINK RND

product image

321527B00000G Picture
See larger image
SeekIC No. : 002533897 Detail

321527B00000G: Heat Sinks TO-5 HEATSINK RND

321527B00000G Data Sheet

floor Price/Ceiling Price

US $ 4.3~4.85 / Piece | Get Latest Price
Part Number:
321527B00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~291
  • 291~500
  • Unit Price
  • $4.85
  • $4.3
  • Processing time
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Press Fit
Heatsink Material : Aluminum Fin Style : Radial
Thermal Resistance : 35.2 C / W Length : 19.05 mm
Width : 5.33 mm Height : 7.37 mm
Designed for : TO-5, TO-39

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Press Fit
Length : 19.05 mm
Fin Style : Radial
Thermal Resistance : 35.2 C / W
Height : 7.37 mm
Designed for : TO-5, TO-39
Width : 5.33 mm


Pinout

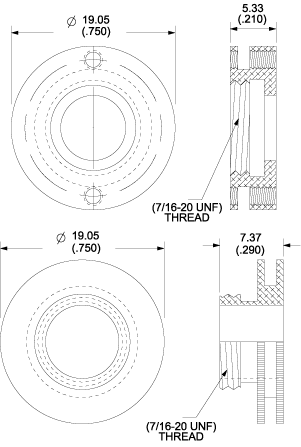

Connection Diagram


Specifications

Part # Description Finish Board Mounting
321527B00000G Two Piece heat sink with tapped mounting holes for retention Black Anodize N/A



Description

Thermal Resistance 35.20

Thermal resistance value of 321527B00000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information321527B00000G
VendorAavid Thermalloy
CategoryFans, Thermal Management
Attachment MethodThreaded Coupling
Height-
Material-
Package CooledTO-5, TO-39
Power Dissipation @ Temperature Rise0.5W @ 20°C
Thermal Resistance @ Forced Air Flow20°C/W @ 300 LFM
Outline19.05mm Dia
Thermal Resistance @ Natural35.2°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 321527B00000G
321527B00000G
HS255 ND
HS255ND
HS255
