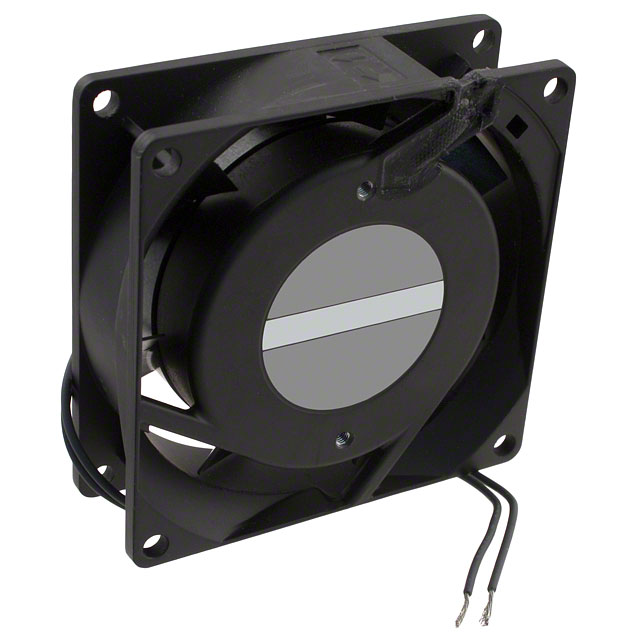

3110MS-12W-B30-AM0: FAN AC 80MM X 25MM 115VAC IP54

3110MS-12W-B30-AM0 Data Sheet

US $ 10.08~19.74 / Piece | Get Latest Price

Part Number:: 3110MS-12W-B30-AM0
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000

Unit Price
$19.74
$18.06
$15.12
$13.86
$12.18
$11.34
$10.5
$10.08

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

3110 evaluate
US $.09 - .13 / Piece

Cable Mounting & Accessories SBT 1375-16 THICK PANEL SNAP
3110 BK001 evaluate
Wire - Single Conductor 17AWG 31/32 BLK
3110 BK005 evaluate
Wire - Single Conductor 17AWG 31/32 BLK

Product Details

Quick Details

Series:	3110MS	Manufacturer:	NMB Technologies Corporation
Air Flow:	24.0 CFM (0.680m³/min)	Bearing Type:	Ball
Fan Type:	Tubeaxial	Features:	-
Noise:	31 dB	Power (Watts):	6.5W
RPM:	3000 RPM	Size / Dimension:	Square - 80mm L x 80mm H x 25mm W
Series :	PESD5V0F1BL	Static Pressure:	0.220 in H2O (55.0 Pa)
Termination:	2 Wire Leads	Voltage - Rated:	115VAC

Description

Bearing Type: Ball
Fan Type: Tubeaxial
Features: -
Size / Dimension: Square - 80mm L x 80mm H x 25mm W
Termination: 2 Wire Leads
Voltage - Rated: 115VAC
Air Flow: 24.0 CFM (0.680m³/min)
RPM: 3000 RPM
Manufacturer: NMB Technologies Corporation
Power (Watts): 6.5W
Series: 3110MS
Noise: 31 dB
Static Pressure: 0.220 in H2O (55.0 Pa)
Weight: 0.529 lb (239.95g)

Parameters:

Technical/Catalog Information	3110MS-12W-B30-AM0
Vendor	NMB Technologies Corporation
Category	Fans, Thermal Management
Air Flow	24.0 CFM (0.67m³/min)
Bearing Type	Ball
Fan Type	Tubeaxial
Noise	31 dB
Power (Watts)	6.5W
Size / Dimension	Square - 80mm L x 80mm H x 25mm W
Static Pressure	0.220 in H2O (55.0 Pa)
Termination	2 Wire Leads
Voltage Rating	115VAC
RPM	3000 RPM
Weight	0.529 lb (239.95g)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	3110MS 12W B30 AM0 3110MS12WB30AM0 P13594 ND P13594ND P13594
