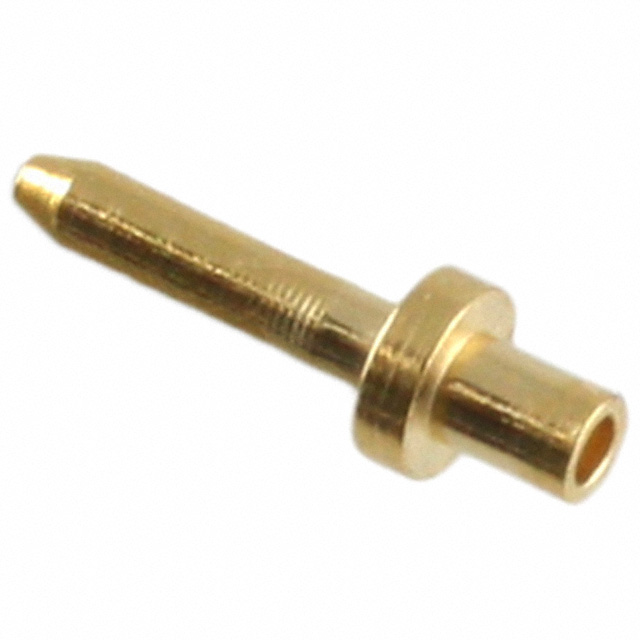

IC & Component Sockets 10u AU OVER NI
3110-1-00-15-00-00-08-0: IC & Component Sockets 10u AU OVER NI
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Technical/Catalog Information | 3110-1-00-15-00-00-08-0 |
Vendor | Mill Max |
Category | Connectors |
Type | Pin Contact |
Mounting Type | Swage Mount |
Flange Diameter | 1.778 mm [Typ] |
Flange Thickness | 0.508 mm [Nom] |
Outside Diameter | 0.762 mm [Typ] |
Length Above Board | 4.318 mm [Typ] |
Length Below Board | 1.295 mm [Typ] |
Through Hole Size | 1.090 mm [Min] |
Packaging | Bulk |
Contact Material | Brass Alloy |
Contact Finish | Gold |
Operating Temperature | -55 °C [Min] |
Operating Temperature | 125 °C [Max] |
Other Names | 3110 1 00 15 00 00 08 0 3110100150000080 3110 100150000080 ND 3110100150000080ND 3110-100150000080 |
