3106KL-05W-B50-B00, US $ 3.76-7.36, 3106KL-05W-B50-B00 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003442866 Detail

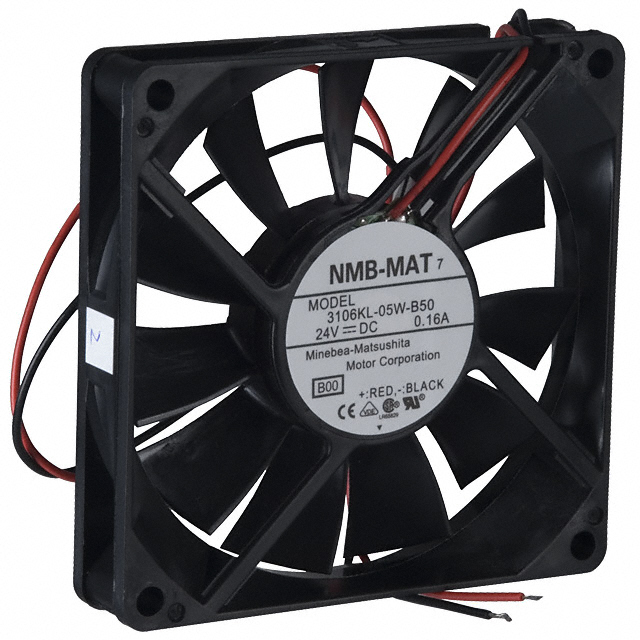

3106KL-05W-B50-B00: FAN 24V 2.88W 80X15MM 3000 RPM

3106KL-05W-B50-B00 Data Sheet

US $ 3.76~7.36 / Piece | Get Latest Price

Part Number:: 3106KL-05W-B50-B00
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000

Unit Price
$7.36
$6.73
$5.64
$5.17
$4.54
$4.23
$3.92
$3.76

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

3106 evaluate
US $.04 - .07 / Piece

Mounting Hardware .500 NYL Shldr Wshr #8 screw
3106 00010030 evaluate
US $50.18 - 50.18 / Piece

THERMOSTAT LOW LVL HERMETIC
3106 00010037 evaluate
US $38.93 - 38.93 / Piece

THERMOSTAT LOW LVL HERMETIC

Product Details

Quick Details

Series:	3106KL	Manufacturer:	NMB Technologies Corporation
Fan Type:	Tubeaxial	Size / Dimension:	Square - 80mm L x 80mm H x 15mm W
Voltage - Rated:	24VDC	Power (Watts):	2.88W
Features:	-	RPM:	3000 RPM
Noise:	34 dB	Package / Case :	SSOP-48
Static Pressure:	0.120 in H2O (29.9 Pa)	Air Flow:	32.8 CFM (0.929m³/min)
Termination:	2 Wire Leads	Bearing Type:	Ball

Description

Fan Type: Tubeaxial
Features: -
Termination: 2 Wire Leads
RPM: 3000 RPM
Bearing Type: Ball
Power (Watts): 2.88W
Manufacturer: NMB Technologies Corporation
Voltage - Rated: 24VDC
Static Pressure: 0.120 in H2O (29.9 Pa)
Operating Temperature: 14 ~ 122°F (-10 ~ 50°C)
Size / Dimension: Square - 80mm L x 80mm H x 15mm W
Noise: 34 dB
Series: 3106KL
Air Flow: 32.8 CFM (0.929m³/min)

Parameters:

Technical/Catalog Information	3106KL-05W-B50-B00
Vendor	NMB Technologies Corporation
Category	Fans, Thermal Management
Voltage - Rated	24VDC
Power (Watts)	2.88W
Bearing Type	Ball
Size / Dimension	Square - 80mm L x 80mm H x 15mm W
Air Flow	32.9 CFM
Features	-
Termination	2 Wire Leads
Fan Type	Tubeaxial
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	3106KL 05W B50 B00 3106KL05WB50B00 P13573 ND P13573ND P13573
