3106KL-04W-B30-B02, US $ 3.58-7.01, 3106KL-04W-B30-B02 DataSheet download, circuit diagram from SeekIC.com

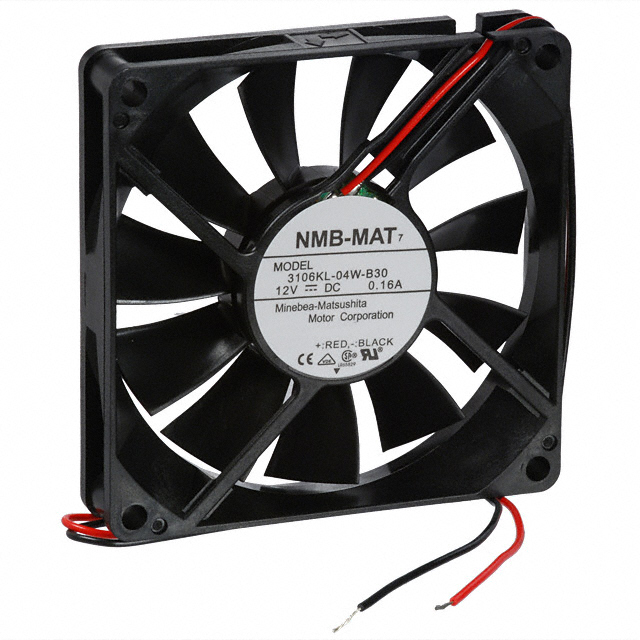

See larger image

SeekIC No. : 003439580 Detail

3106KL-04W-B30-B02: FAN 12V 1.32W 80X15MM 2200 RPM

3106KL-04W-B30-B02 Data Sheet

US $ 3.58~7.01 / Piece | Get Latest Price

Part Number:: 3106KL-04W-B30-B02
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000

Unit Price
$7.01
$6.41
$5.37
$4.92
$4.32
$4.03
$3.73
$3.58

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

3106 evaluate
US $.04 - .07 / Piece

Mounting Hardware .500 NYL Shldr Wshr #8 screw
3106 00010030 evaluate
US $50.18 - 50.18 / Piece

THERMOSTAT LOW LVL HERMETIC
3106 00010037 evaluate
US $38.93 - 38.93 / Piece

THERMOSTAT LOW LVL HERMETIC

Product Details

Quick Details

Series:	3106KL	Manufacturer:	NMB Technologies Corporation
Fan Type:	Tubeaxial	Size / Dimension:	Square - 80mm L x 80mm H x 15mm W
Voltage - Rated:	12VDC	Power (Watts):	1.32W
Features:	-	RPM:	2200 RPM
Noise:	26 dB	Static Pressure:	0.064 in H2O (16.0 Pa)
Package / Case :	SOT-307	Air Flow:	23.3 CFM (0.660m³/min)
Termination:	2 Wire Leads	Bearing Type:	Ball

Description

Fan Type: Tubeaxial
Voltage - Rated: 12VDC
Features: -
Termination: 2 Wire Leads
Bearing Type: Ball
Power (Watts): 1.32W
Manufacturer: NMB Technologies Corporation
Operating Temperature: 14 ~ 140°F (-10 ~ 60°C)
Air Flow: 23.3 CFM (0.660m³/min)
Size / Dimension: Square - 80mm L x 80mm H x 15mm W
RPM: 2200 RPM
Series: 3106KL
Noise: 26 dB
Static Pressure: 0.064 in H2O (16.0 Pa)

Parameters:

Technical/Catalog Information	3106KL-04W-B30-B02
Vendor	NMB Technologies Corporation
Category	Fans, Thermal Management
Voltage - Rated	12VDC
Power (Watts)	1.32W
Bearing Type	Ball
Size / Dimension	Square - 80mm L x 80mm H x 15mm W
Air Flow	23.3 CFM
Features	-
Termination	2 Wire Leads
Fan Type	Tubeaxial
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	3106KL 04W B30 B02 3106KL04WB30B02 P13571 ND P13571ND P13571
