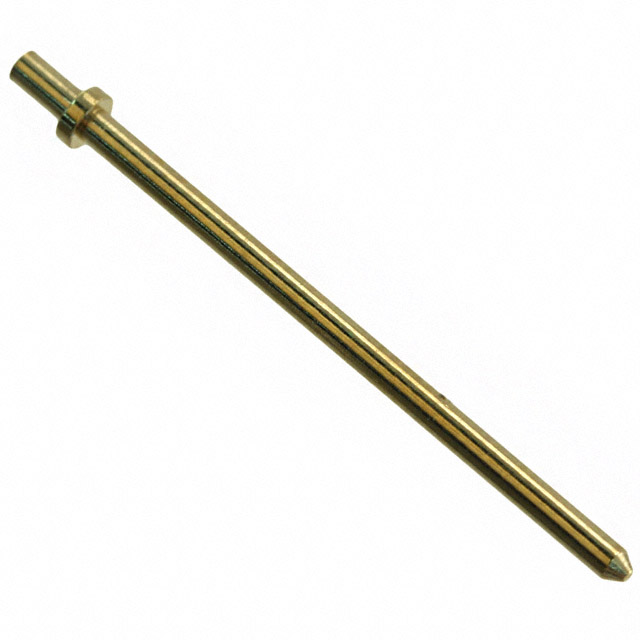

IC & Component Sockets 10u AU OVER NI
3105-2-00-15-00-00-08-0: IC & Component Sockets 10u AU OVER NI
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Technical/Catalog Information | 3105-2-00-15-00-00-08-0 |
Vendor | Mill Max |
Category | Connectors |
Type | Pin Contact |
Mounting Type | Swage Mount |
Flange Diameter | 1.778 mm [Typ] |
Flange Thickness | 0.508 mm [Nom] |
Outside Diameter | 1.016 mm [Typ] |
Length Above Board | 19.558 mm [Typ] |
Length Below Board | 2.083 mm [Typ] |
Through Hole Size | 1.090 mm [Min] |
Packaging | Bulk |
Contact Material | Brass Alloy |
Contact Finish | Gold |
Operating Temperature | -55 °C [Min] |
Operating Temperature | 125 °C [Max] |
Other Names | 3105 2 00 15 00 00 08 0 3105200150000080 3105 200150000080 ND 3105200150000080ND 3105-200150000080 |
