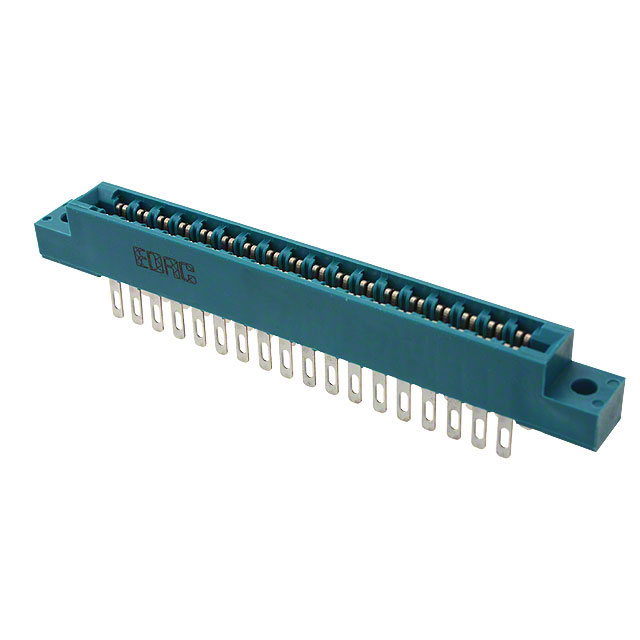

See larger image

SeekIC No. : 002150904 Detail

307-036-500-202: Standard Card Edge Connectors 36P SOLDER EYELETS 5.08mm ROW SPACE

307-036-500-202 Data Sheet

US $ 2.49~3.02 / Piece | Get Latest Price

Part Number:: 307-036-500-202
Mfg:: EDAC
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$3.02
$2.83
$2.65
$2.49

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

307-006-501-101 evaluate
US $5.34 - 7.69 / Piece

Standard Card Edge Connectors 6 POS .156" x .200" GREEN
307-006-501-102 evaluate
US $5.34 - 7.69 / Piece

Standard Card Edge Connectors 6 POS .156" x .200" GREEN
307-006-501-104 evaluate
US $5.34 - 7.69 / Piece

Standard Card Edge Connectors 6 POS .156" x .200" GREEN

Product Details

Quick Details

Series :	307	Product Type :	With Flanges
Number of Positions / Contacts :	36	Mounting Style :	Through Hole
Pitch :	3.96 mm	Housing Material :	Thermoplastic Polyester
Contact Material :	Copper, Nickel, Tin Alloy	Contact Plating :	Gold

Description

Mounting Angle :
Board Thickness :
Pitch : 3.96 mm
Mounting Style : Through Hole
Contact Plating : Gold
Product Type : With Flanges
Number of Positions / Contacts : 36
Contact Material : Copper, Nickel, Tin Alloy
Housing Material : Thermoplastic Polyester
Series : 307

Parameters:

Technical/Catalog Information	307-036-500-202
Vendor	EDAC Inc.
Category	Connectors
Card Thickness	0.062" (1.57mm)
Card Type	Dual Edge
Contact Finish	Gold
Mounting Type	Panel Mount, Solder Eyelet
Features	Flange
Number of Positions	36
Number of Rows	2
Pitch	0.156" (3.96mm)
Packaging	Bulk
Color	Green
Contact Finish Thickness	-
Gender	Female
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	307 036 500 202 307036500202 EDC307360 ND EDC307360ND EDC307360
