SeekIC No. : 00135412 Detail

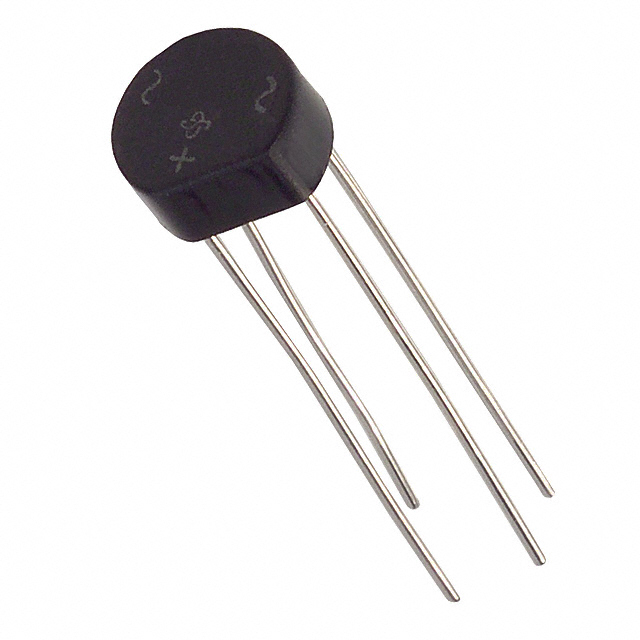

2W06G: Bridge Rectifiers 600V 2A BRIDGE

2W06G Data Sheet

Get Latest Price

Part Number:: 2W06G
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

2W06M evaluate
US $.09 - .09 / Piece

Bridge Rectifiers SI BRIDGE RECT WOM 50-1KV 2A 600P/420R
2W06G-E4/51 evaluate
US $.17 - .31 / Piece

Bridge Rectifiers 2.0 Amp 600 Volt
2W06G_Q evaluate
Bridge Rectifiers 600V 2A BRIDGE

Product Details

Quick Details

Product :	Single Phase Bridge	Peak Reverse Voltage :	600 V
Maximum RMS Reverse Voltage :	420 V	Forward Continuous Current :	2 A
Max Surge Current :	60 A	Forward Voltage Drop :	1.1 V
Maximum Reverse Leakage Current :	5 uA	Power Dissipation :	3.13 W
Maximum Operating Temperature :	+ 150 C	Length :	9.1 mm
Width :	9.1 mm	Height :	5.5 mm
Mounting Style :	Through Hole	Package / Case :	WOB-4
Packaging :	Bulk

Description

Product : Single Phase Bridge
Peak Reverse Voltage : 600 V
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Maximum RMS Reverse Voltage : 420 V
Forward Voltage Drop : 1.1 V
Maximum Reverse Leakage Current : 5 uA
Packaging : Bulk
Forward Continuous Current : 2 A
Max Surge Current : 60 A
Length : 9.1 mm
Width : 9.1 mm
Height : 5.5 mm
Package / Case : WOB-4
Power Dissipation : 3.13 W

Specifications

Part Number	2W06G
Total Capacitance C_T (pF)	16
Max Average Rectified Current I_O (A)	2
Peak Repetitive Reverse Voltage V_RRM (V)	600
Peak Forward Surge Current I_FSM (A)	60
Forward Voltage Drop V_F (V)	1.1
Max Reverse Current I_R (µA)	5

Description

2W005G thru 2W06G datasheet

Parameters:

Technical/Catalog Information	2W06G
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Diode Type	Single Phase
Package / Case	WOB
Packaging	Bulk
Reverse Recovery Time (trr)	-
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - DC Forward (If)	2A
Voltage - Peak Reverse (Max)	600V
Mounting Type	Through Hole
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2W06G 2W06G
