2SK3746

MOSFET HIGH-VOLTAGE POWER MOSFET

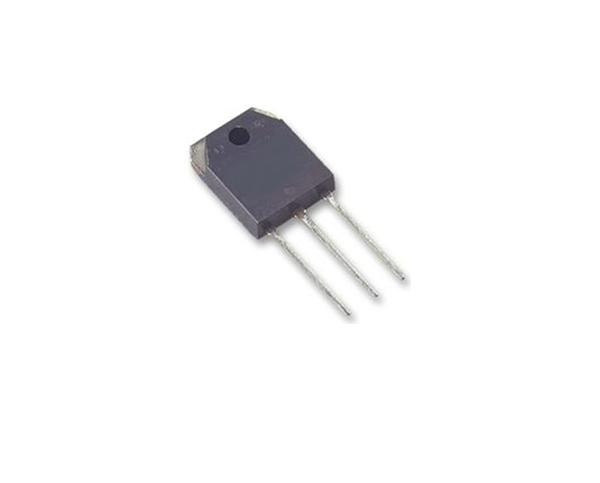

product image

2SK3746 Picture
See larger image
SeekIC No. : 00154641 Detail

2SK3746: MOSFET HIGH-VOLTAGE POWER MOSFET

2SK3746 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
2SK3746
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 1500 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 2 A
Resistance Drain-Source RDS (on) : 10 Ohms Configuration : Single
Maximum Operating Temperature : + 150 C Mounting Style : Through Hole
Package / Case : TO-3PB-3 Packaging : Tray

Description

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Configuration : Single
Mounting Style : Through Hole
Maximum Operating Temperature : + 150 C
Continuous Drain Current : 2 A
Resistance Drain-Source RDS (on) : 10 Ohms
Drain-Source Breakdown Voltage : 1500 V
Packaging : Tray
Package / Case : TO-3PB-3


Features:

• Low ON-resistance, low input capacitance, ultrahigh-speed switching.
• High reliability (Adoption of HVP process).
• Avalanche resistance guarantee






Pinout






Specifications

Absolute maximum ratings
VDSS [V] 1500
VGSS [V] 20
ID [A] 2
PD [W] 110
Tc=25°C
Electrical characteristics
RDS(on) typ []
VGS=10V
ID [A]=1		 10
VGS(off) min [V] 2.5
VGS(off) max [V] 3.5
|yfs| typ [S] 1.4
Ciss typ [pF] 380
Qg typ [nC] 37.5


Parameter Symbol

Conditions

 Ratings Unit
Drain-to-Source Voltage VDSS

1500 V
Gate-to-Source Voltage VGSS

±20 V
Drain Current (DC) ID*

2 A
Drain Current (Pulse) IDP PW10ms, duty cycle1% 4 A
Allowable Power Dissipation PD

2.5 W

Tc=25

 110 W
Channel Temperature Tch

150
Storage Temperature Tstg

-55 to +150
Avalanche Enargy (Single Pulse) *1 EAS

42 mJ
Avalanche Current *2 IAV

2 A
*1 VDD=99V, L=20mH, IAV=2A
*2 L20mH, Single pulse
