2SK3745LS

MOSFET HIGH-VOLTAGE POWER MOSFET

product image

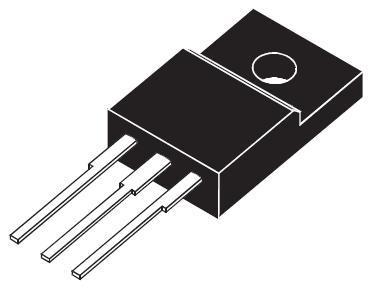

2SK3745LS Picture
See larger image
SeekIC No. : 00153679 Detail

2SK3745LS: MOSFET HIGH-VOLTAGE POWER MOSFET

2SK3745LS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
2SK3745LS
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 1500 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 2 A
Resistance Drain-Source RDS (on) : 10 Ohms Configuration : Single
Maximum Operating Temperature : + 150 C Mounting Style : Through Hole
Package / Case : TO-220FP-3 Packaging : Bulk

Description

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Configuration : Single
Mounting Style : Through Hole
Maximum Operating Temperature : + 150 C
Packaging : Bulk
Package / Case : TO-220FP-3
Continuous Drain Current : 2 A
Resistance Drain-Source RDS (on) : 10 Ohms
Drain-Source Breakdown Voltage : 1500 V


Application

• Low ON-resistance, low input capacitance, ultrahigh-speed switching.
• High reliability (Adoption of HVP process).
• Micaless package facilitating mounting.
• Avalanche resistance guarantee.




Pinout






Specifications

Parameter Symbol Conditions Ratings Unit
Drain-to-Source Voltage VDSS 1500 V
Gate-to-Source Voltage VGSS ±20 V
Drain Current (DC) ID* 2 A
Drain Current (Pulse) IDP 4 A
Allowable Power Dissipation PD 2.0 W
Tc=25 35 W
Channel Temperature Tch 150
Storage Temperature Tstg -55 to +150
Avalanche Enargy (Single Pulse) *1 EAS 42 mJ
Avalanche Current *2 IAV 2 A
*Shows chip capability
*1 VDD=99V, L=20mH, IAV=2A
*2 L20mH, single pulse



Absolute maximum ratings
VDSS [V] 1500
VGSS [V] 20
ID [A] 2
PD [W] 35
Tc=25°C
Electrical characteristics
RDS(on) typ []
VGS=10V
ID [A]=1		 10
VGS(off) min [V] 2.5
VGS(off) max [V] 3.5
|yfs| typ [S] 1.4
Ciss typ [pF] 380
Qg typ [nC] 37.5
