Product Details

Description

Features:

• Low ON-resistance.
• Ultrahigh-speed switching.
• 4V drive.
• Motor drive, DC / DC converter.
• Avalanche resistance guarantee.

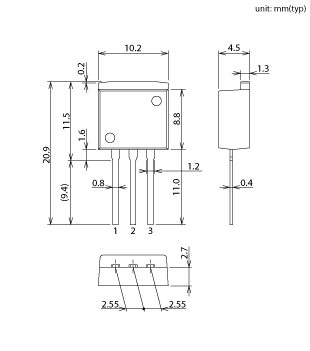

Pinout

Specifications

Absolute maximum ratings
VDSS [V]	60
VGSS [V]	20
ID [A]	14
PD [W]	40 Tc=25°C

Electrical characteristics
RDS(on) typ [] VGS=10V ID [A]=7	0.102
RDS(on) typ [] VGS=4V ID [A]=7	0.147
VGS(off) min [V]	1.2
VGS(off) max [V]	2.6
\|yfs\| typ [S]	12
Ciss typ [pF]	1020
Qg typ [nC]	21

Parameter	Symbol	Conditions	Ratings	Unit
Drain-to-Source Voltage	V_DSS		60	V
Gate-to-Source Voltage	V_GSO		±20	V
Drain Current(DC)	I_D		-14	A
Max drain current(Pulse)	I_DP	PW10s, duty cycle1%	-56	A
Allowable Power Dissipation	P_D		1.65	W
Allowable Power Dissipation	P_D	Tc=25°C	40	W
Channel Temperature	T_CH		150
Avalanche Energy (Single Pulse) *1	E_AS		85	mJ
Avalanche Current *2	I_AV		-14	A
Storage Temperature	T_stg		-55 to +150

Note : *1 V_DD=30V, L=500H, I_AV=--14A
*2 L500H, Single pulse
Marking : J659
