Product Details

Description

Application

Low frequency power amplifier complementary pair with 2SB649/A

Pinout

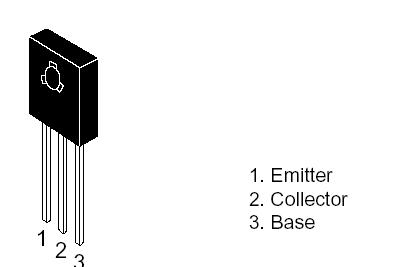

Connection Diagram

Specifications

Item	Symbol	2SD669	2SD669A	Unit
Collector to base voltage	V_CBO	180	180	V
Collector to emitter voltage	V_CEO	120	160	V
Emitter to base voltage	V_EBO	5	5	V
Collector current	I_C	1.5	1.5	A
Collector peak current	I_C(peak)	3	3	A
Collector power dissipation	P_C	1	1	W
Collector power dissipation	P_C^*1	20	20	W
Junction temperature	Tj	150	150	°C
Storage temperature	Tstg	55 to +150	55 to +150	°C
