Product Details

Description

Features:

• High speed switching t_f= 0.2 µs typ
• High breakdown voltage V_CBO = 1500 V
• Isolated package; TO-3PFM

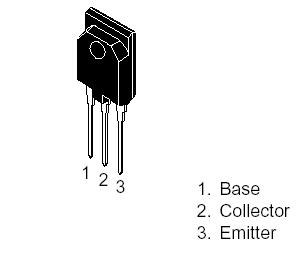

Pinout

Connection Diagram

Specifications

Item	Symbol	Rating	Unit
Collector to base voltage	V_CBO	1500	V
Collector to emitter voltage	V_CEO	800	V
Emitter to base voltage	V_EBO	6	V
Collector current	I_C	6	A
Collector peak current	i_C(peak)	7	A
Collector surge current	i_C(surge)	16	A
Collector power dissipation	P_C^*1	50	W
Junction temperature	Tj	150	°C
Storage temperature	Tstg	55 to +150	°C
