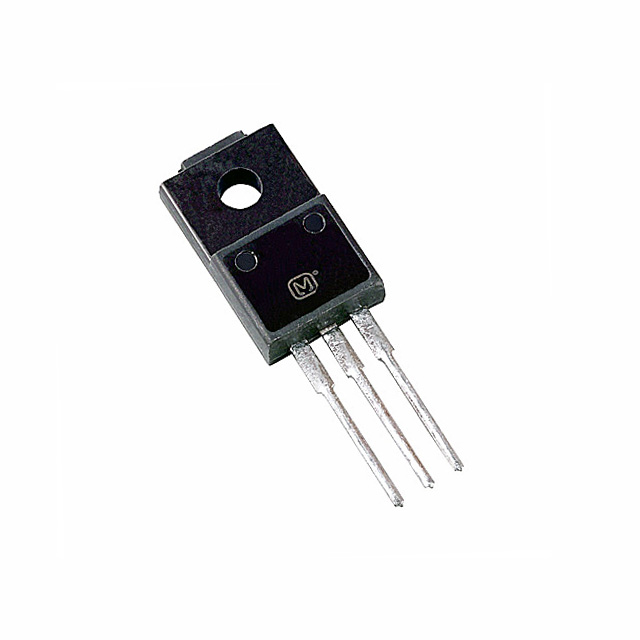

Here is the description about 2SC3946 of the Silicon NPN triple diffusion planar type for color TV horizontal deflection driver. It has three features. The first one is that it is high collector to emitter VCEO. And it is Large collector power dissipation PC. Furthermore, it is Full-pack package which can be installed to the heat sink with one screw .
The absolute maximum ratings of 2SC3946 are at Ta = 25°C ambient temperature unless otherwise specified. The Collector-Emitter Voltage (VCEO )is 300V. The Collector-Base Voltage(VCBO)is 350V.The Emitter-Base Voltage (VEBO )is 7.5V. The peak collector Current (Icp)is 400mA. The Collector Current (IC)is 200mA.Its junction temperature is 150°C. Its storage temperature is from -55°C to +150°C.
And here are the Electrical Characteristics (Ta =25°C).The Collector cut-off current is from min to 2mA. The Emitter cut-off current is from min to 2mA. The Collector-Base voltage is from 350V to Mix. The Collector-emitter voltage is from 300V to Mix. The Collector-emitter saturation voltage is from min to 1.0V. The emitter - Base voltage is from min to 7.5V. The Transition frequency is from 50 to max MHz.
