Product Details

Description

Features:

· High VEBO.
· Wide ASO and high durability against breakdown.

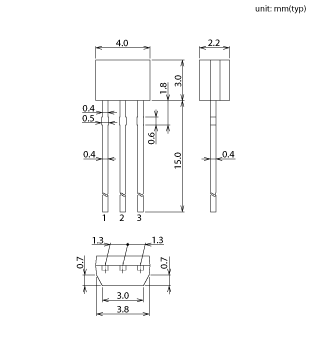

Pinout

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Collector-base voltage	V_CBO		()60	V
Collector-emitter voltage	V_CEO		()50	V
Emitter-base voltage	V_EBO		()15	V
Collector current	Ic		()200	mA
Collector Current (Pulse)	I_CP		()400	mA
Collector Dissipation	P_C		250	mW
Junction temperature	T_j		150	°C
Storage temperature	T_stg		-55 to +150	°C

Absolute maximum ratings
VCEO [V]	50
VEBO [V]	15
IC [A]	0.2
PC [W]	0.25

Electrical characteristics
hFE min	100
hFE max	560
VCE [V]	6
IC [mA]	1
VCE (sat) typ [V]	0.15
VCE (sat) max [V]	0.5
IC [mA]	50
IB [mA]	5
