Product Details

Description

Features:

· High VEBO.
· Wide ASO and high durability against breakdown.

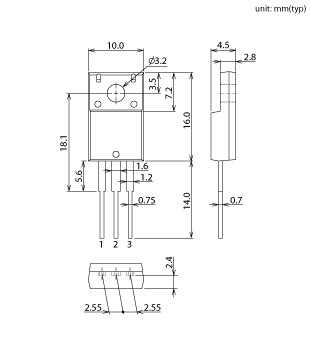

Pinout

Specifications

Absolute maximum ratings
VCEO [V]	50
VEBO [V]	15
IC [A]	0.15
PC [W]	0.2

Electrical characteristics
hFE min	90
hFE max	600
VCE [V]	6
IC [mA]	1
VCE (sat) typ [V]	-
VCE (sat) max [V]	0.5
IC [mA]	50
IB [mA]	5

Parameter	Symbol	Conditions	Ratings	Unit
Collector-base voltage	V_CBO		()60	V
Collector-emitter voltage	V_CEO		()50	V
Emitter-base voltage	V_EBO		()15	V
Collector current	Ic		()150	A
Collector Current (Pulse)	I_CP		()300	A
Collector Dissipation	P_C		200	mW
Junction temperature	T_j		125	°C
Storage temperature	T_stg		-55 to +125	°C
